MIPI C/D-PHY RX

This IP is a C-PHY/D-PHY Combo RX IP which can be flexibly configured as Slave D-PHY or C-PHY. It can support camera interface CSI-2 and display interface DSI-2 applications in both D-PHY and C-PHY modes. It can work with both old D-PHY and new C-PHY systems.

The C-PHY is based on 3-Phase symbol encoding technology delivering 2.28 bits per symbol over three-wire trios, and operates with a symbol rate range of 80 to 4500 Msps per trio, which is the equivalent of about 182.8 to 10285 Mbps per trio.

Each lane of the D-PHY supports 80 to 4500 Mbps in High-Speed mode and 10 Mbps in Low-Power escape mode.

• Complies with the MIPI D-PHY spec v3.0
• Complies with the MIPI C-PHY spec v2.1
• 80 to 4500 Mbps data rate per lane in D-PHY HS mode (The maximum throughput is 18 Gbps with 4 data-lanes)
• 80 to 4500 Msps symbol rate per trio in C-PHY HS mode (The maximum throughput is 30.78 Gbps with 3 trios)

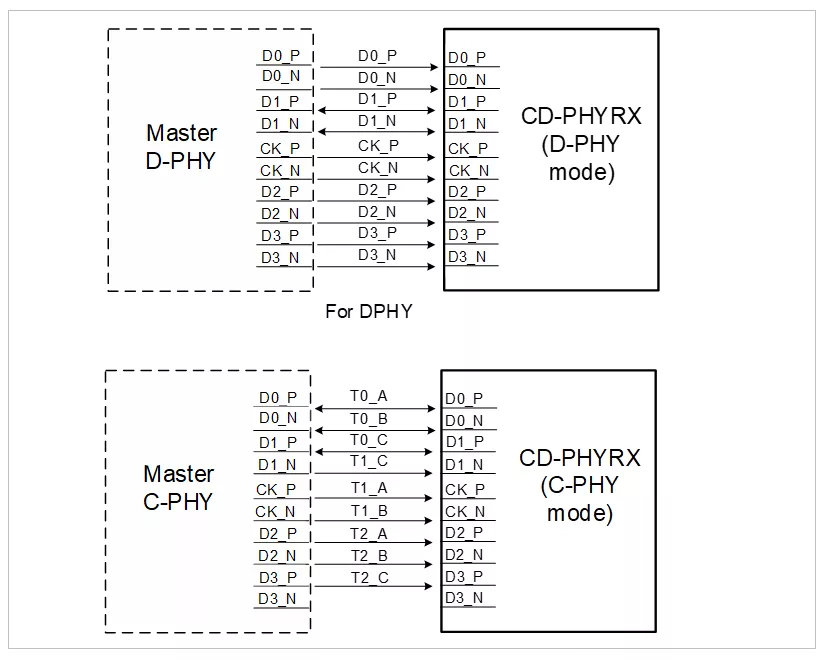

• Three 3-phase encoded data lanes for C-PHY Mode (T0 lane is bi-dir)
• Supports one clock and four data lanes for D-PHY Mode (D0 lane is bi-dir)
• All lanes support HS and ULPS modes in forward direction
• All lanes support Escape (LPDT, Trigger) mode in forward direction
• D0 lane supports reverse Escape mode (LPDT, Trigger) and Turn-Around in LP mode
• Supports HS half swing for D-PHY
• Supports HS De-skew, Alternate calibration sequence and Preamble sequence
• Supports LVLP mode
• Supports terminated and un-terminated modes
• Ultra low current in Shutdown and ULPS modes
• On-chip calibration for termination impedance
• Built-in self-test function
• ASIL-B Functional Safety certified
• AEC-Q100 Grade1 qualified
