Memory & Bus Protection IP Core

The Memory & Bus Protection IP Core module enables on-the-fly encryption/decryption and authentication to the external memory.

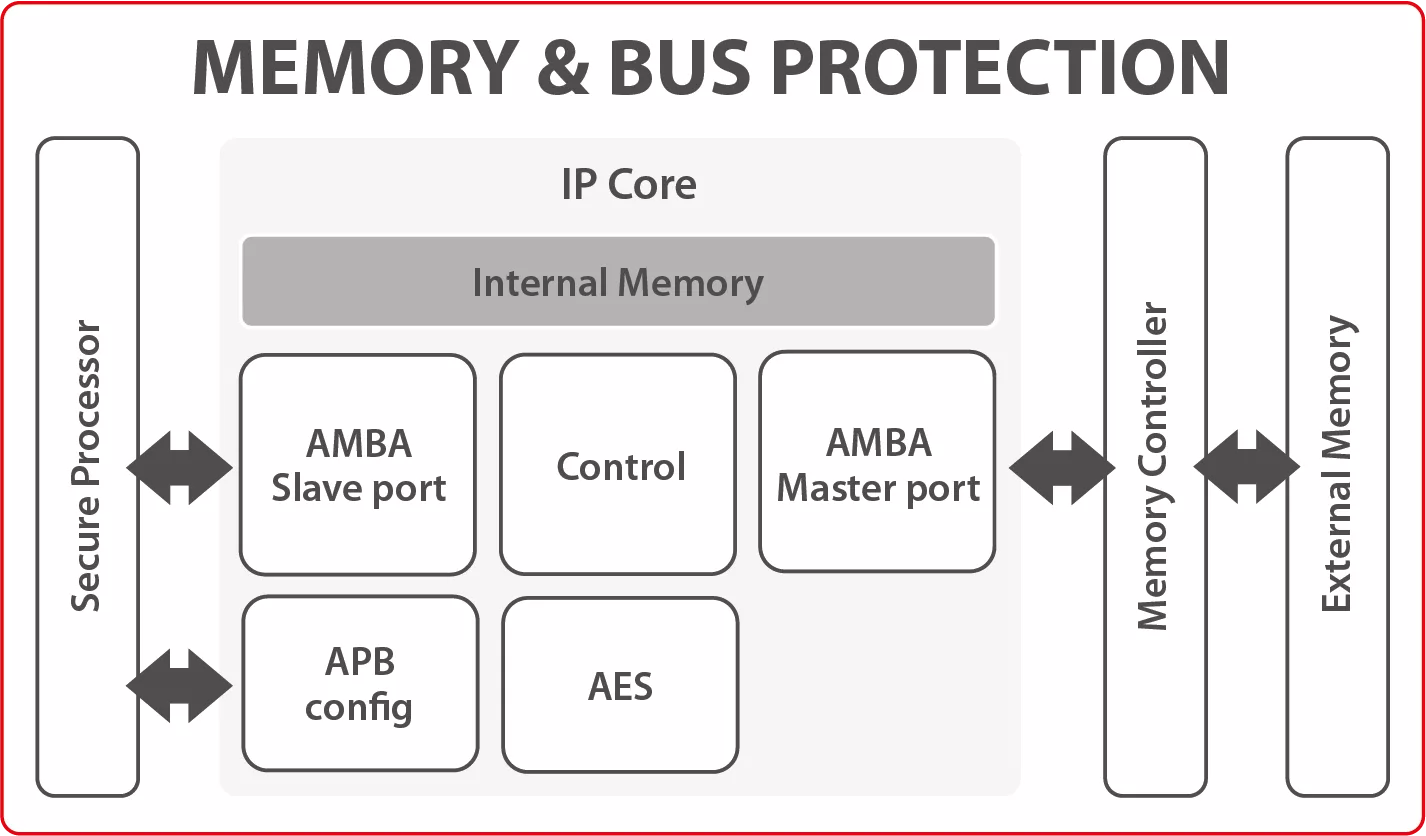

It supports AHB/AXI slave/master interfaces, APB port for configuration purpose, and contains a cache. It is typically placed between the processor(s) and an external memory controller (DDRx). This IP Core improves tamper resistance by avoiding any modification, spoofing or analysis of external data.

Implementation aspects

The processor can securely and transparently write/read data or code from external memory. It leverages the AES Core from Secure-IC. The unique architecture enables a high level of flexibility (cache size, performances) and allows it to be used by microcontroller and multi-core architectures. The features required by a specific application can be taken into account in order to select the most optimal configuration for any FPGA or ASIC technology.

• Protect the external memory
• On-the-fly encryption/decryption and authentication
• Transparent for the processor
• Scalable data bus width (32, 64, 128 bits)
• AMBA Master/Slave interfaces
• Supports all key sizes (128/192/256 bits)
• Scalable internal Cache
• ASIC and FPGA

• Embedded security processor
• Secure payment

• Netlist or RTL
• Scripts for synthesis & STA
• Self-checking RTL test-bench on referenced vectors
• Documentation
