Vendor: Sirius Wireless Category: Bluetooth

Low Power BTDM5.3 Connectivity Transceiver

Contact Provider Request Datasheet

Key features

  • Compliant to Bluetooth core specification 5
  • Supports Bluetooth basic rate (BR), enhanced data rate (EDR) and low energy (LE)
  • Low power consumption
  • Low-cost BOM
  • Excellent blocking performance, exceeding standards requirements
  • Single-pin, single-ended RF interface
  • Simple matching to 50 0 using a single capacitor Efficient PA delivering up to +8 dBm (Bluetooth EDR) Reference crystal oscillator (12 MHz - 48 MHz) with integrated tunable load capacitors
  • LPO RC oscillator (32.768 kHz) for sleep clock
  • Small area 0.81mm2)

Block Diagram

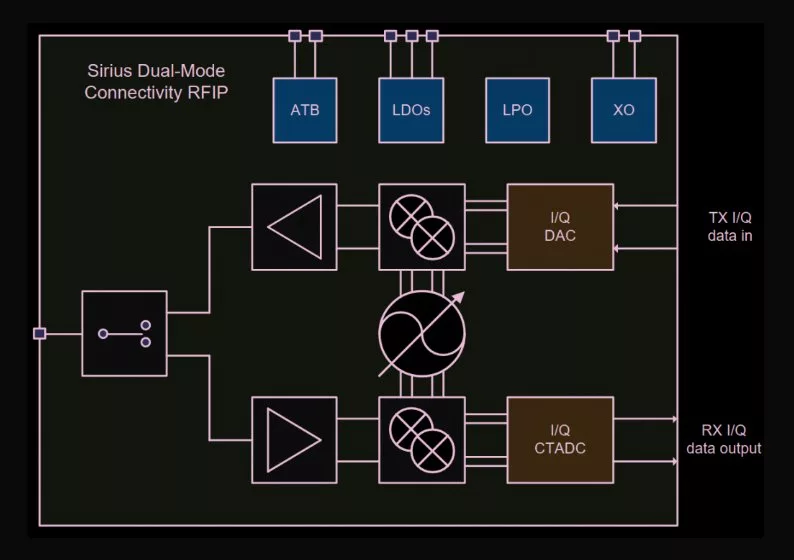

Low Power BTDM5.3 Connectivity Transceiver block diagram

Benefits

  • 1.35 V analog supplies with integrated regulators
  • 1.35 V PA supply for EDR mode
  • 1.1 V digital supply
  • Temperature range -40 - +125 °C (junction) (range for ambient dependent on package)
  • Sensitivity
    • BR: -96 dBm
    • EDR (2 Mb/s): -95 dBm
    • EDR (3 Mb/s): -89 dBm
    • LE (1 Mb/s): -97 dBm
    • LE (2 Mb/s): -94dBm
    • LE (500 Kb/s): -101 dBm
    • LE (125 Kb/s): -105dBm
  • Pow +8 dBm (EDR), 14 dB control range
  • Peak active current consumption
    • RX mode (all modes)
      • 10 mA @ 1.35 V (VDDA)
    • TX mode:
      • 28 mA @ 1.35 V (+4 dBm, EDR)
      • 46 mA @ 2.5 V (+8 dBm, EDR)

Specifications

Identity

Part Number
Low Power BTDM5.3 Connectivity Transceiver
Vendor
Sirius Wireless
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
