Vendor: Shikino High-Tech CO.,LTD Category: Video Processing

JPEG Encoder 8K (YUV422) 96fps@200MHz (32Sample/clk)

The KJN-9EX_ENC consists of IP cores that conform to the JPEG Extended DCT-based process for compressing 8bit/12bit still images.

Overview

The KJN-9EX_ENC consists of IP cores that conform to the JPEG Extended DCT-based process for compressing 8bit/12bit still images.

Key features

  • Based on JPEG Extended DCT-based process Standards.
  • With proprietary algorithm, we offer fast, small scale and low power consumption core.
  • The arithmetic accuracy also satisfies the requirement of compliance testing of JPEG Part2 ?ISO/IEC10918-2?j.
  • Image Data I/O Format
    • Block Interleaved Format
  • Image Size
    • Any size that can be divided by MCU unit.
  • Operation mode like processing mode, image size, DRI value etc. are set in internal register via external CPU.
  • Quantization table
    • Written from external during compression.
  • Huffman table
    • Fixed table is used for compression (SHIKINO original table is used for 12bit JPEG).
  • Marker
    • Automatically generated during compression.
    • Processed marker: SOI, SOF0, SOF1, SOS, DQT, DHT, DRI, RSTm, EOI

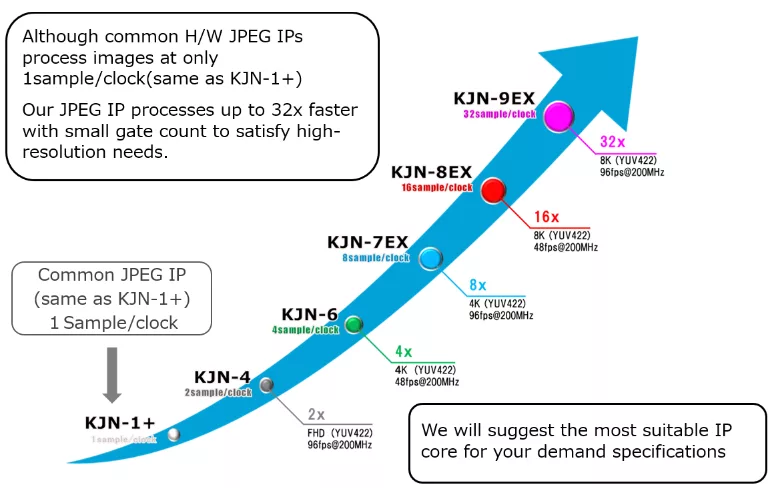

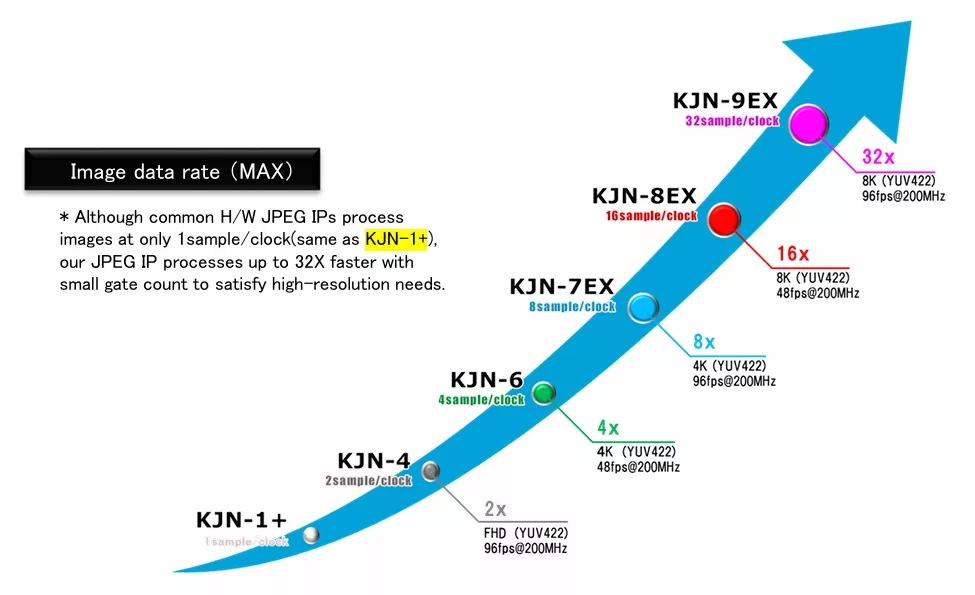

Block Diagram

Click to open fullscreen
1 / 2
Keyboard arrows: ← → • Enter: fullscreen • Esc: close

Applications

  • Digital still cameras
  • Video Phones
  • Image scanner
  • Printers
  • External board for PC
  • Surveillance systems
  • FAX
  • Image transfer devices
  • Mobile terminals
  • Smart phone
  • Tablet devices
  • Medical devices

What’s Included?

  • RTL Source (Verilog-HDL)
  • Logic synthesis scripts
  • Test vectors
  • Reference C-MODEL
  • IP specification file
  • Design specificaions file
  • C-MODEL manual file

Specifications

Identity

Part Number
KJN-9EX_ENC
Vendor
Shikino High-Tech CO.,LTD
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
