Vendor: Shikino High-Tech CO.,LTD Category: Video Processing

JPEG Decoder 8K (YUV422) 48fps@200MHz, (16 Sample/clk)

The KJN-8EX_DEC conform to the JPEG Extended DCT-based process for decompressing 8bit/12bit still images.

Overview

The KJN-8EX_DEC conform to the JPEG Extended DCT-based process for decompressing 8bit/12bit still images.

Key features

  • ?Based on JPEG Extended DCT-based process Standards.
  • ?The arithmetic accuracy also satisfies the requirement of compliance testing of JPEG Part2 ?ISO/IEC10918-2?j.
  • ?Image Data Output Format:Block Interleaved Format
  • ?Image Size:Any size that can be divided by MCU unit.
  • ?Operation mode like processing mode, image size, DRI value etc., Quantization table and ?Huffman table downloaded from compressed data during decompression.

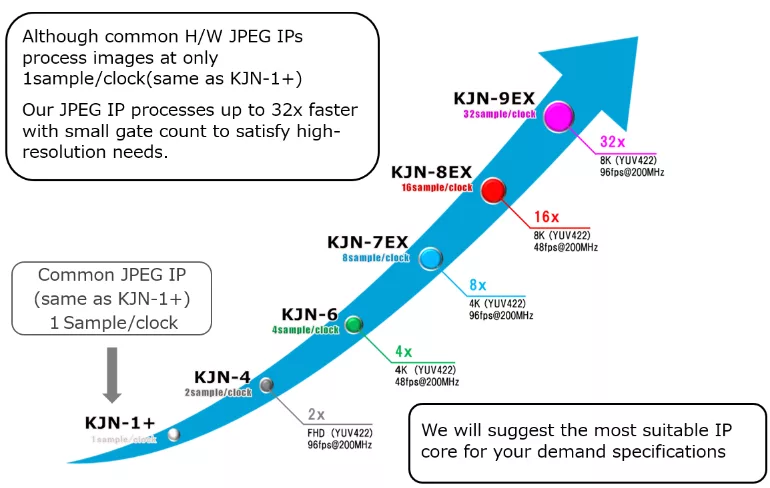

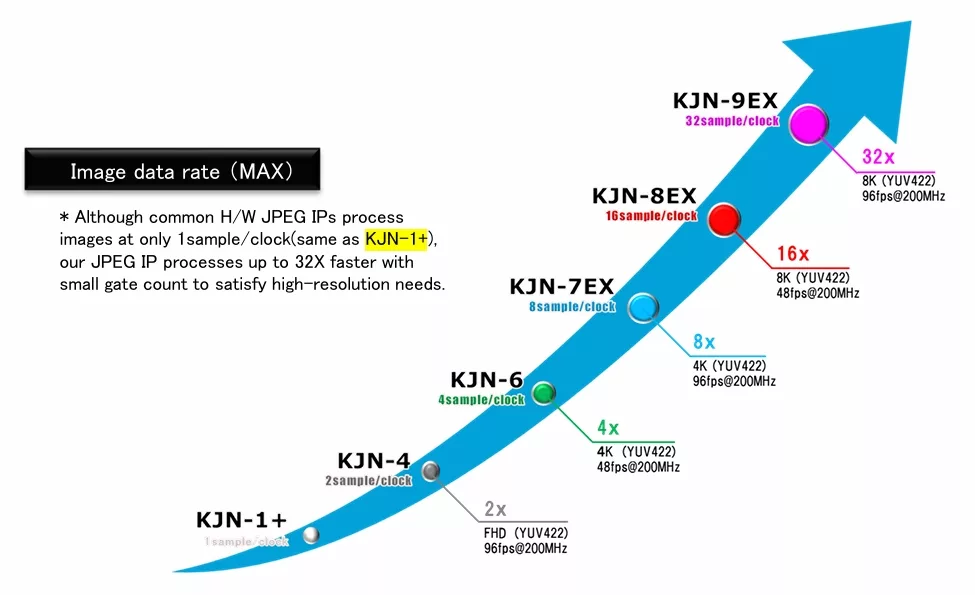

Block Diagram

Click to open fullscreen
1 / 2
Keyboard arrows: ← → • Enter: fullscreen • Esc: close

Applications

  • Digital still cameras
  • Video Phones
  • Image scanner
  • Printers
  • External board for PC
  • Surveillance systems
  • FAX
  • Image transfer devices
  • Mobile terminals
  • Smart phone
  • Tablet devices
  • Medical devices

What’s Included?

  • RTL Source (Verilog-HDL)
  • Logic synthesis scripts
  • Test vectors
  • Reference C-MODEL
  • IP specification file
  • Design specificaions file
  • C-MODEL manual file

Specifications

Identity

Part Number
KJN-8EX_DEC 12bit
Vendor
Shikino High-Tech CO.,LTD
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
