I3C V1.1 Advanced Target

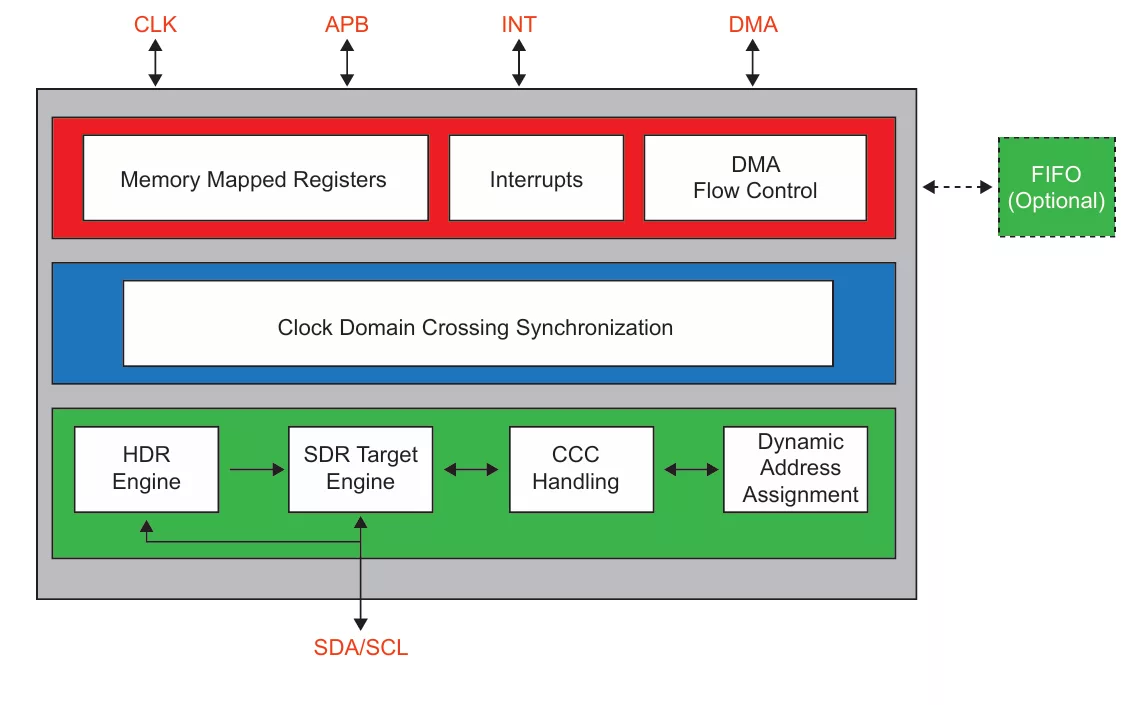

The I3C Advanced Target is a highly configurable I3C Target that can be used in microcontroller based environments to provide I3C connectivity to any device. It can be configured in a number of different ways to allow the core to use the minimum amount of logic to reduce both area (cost) and power.

•  Highly configurable core that allows customer to
• minimize unneeded logic
• Compliant with MIPI I3C V1.1.1
• Compliant with MIPI I3C Basic V1.1.1
•  Dynamic addressing
•  Single Data Rate (SDR)
• Error detection types (TE0-TE5)
• Advanced I3C features
  •   HDR-BT with up to 100 Mbps bandwidth
  • Multilane with 1, 2, or 4 SDA lanes
  •  Hot join
  •  In-band interrupts
  •  Timing Control
    •  Asynchronous Mode 0
    •  Synchronous Mode
  •  High-speed mode (HDR-DDR)
  •  Group addressing
  •  Target reset
  •  All Common Command Codes (CCCs) supported
• AMBA APB (v3) application interface
  •  Memory mapped registers
  •  DMA, flow control features
  •  FIFO options
  •  Internal 2-byte ping-pong buffer
  •  Internal FIFO (or 32 words for HDR-BT mode)
• Static I2C address support
•  Legacy I2C coexistence, including I2C messaging
•  Support for I2C pads with 50ns glitch filter

• IoT Edge Devices
• Industrial Sensors
• Small Controllers
• Mixed Signal Digital - MEMS
• Smart Sensors
• Smart Lighting
• Temperature, Pressure, Acceleration Monitors
• Personal Health Monitors
• I3C Connected Devices

• Verilog RTL source code
• Test bench with test suites
• Documentation including User's Guide and Integration Guide
• Technology-independent synthesis constraints
