HDMI 2.0 Tx
Silicon Library (SLI) HDMI 2.0 TX IP solution, which consists of analog PHY IP and digital LINK IP, is compliant with HDMI 2.0b standard.
Overview
Silicon Library (SLI) HDMI 2.0 TX IP solution, which consists of analog PHY IP and digital LINK IP, is compliant with HDMI 2.0b standard. PHY IP is provided as a hard macro while LINK IP is provided as a soft macro including synthesizable RTL code. SLI HDMI 2.0 TX PHY IP consists of three data channels, one clock channel and a clock multiplier PLL, and it supports the data rate up to 6Gbps per channel. LINK IP includes HDCP compliant with 2.2 / 1.4. The combination of SLI’s PHY IP and LINK IP ensures that customers easily and securely implement HDMI interface to SoCs.
This PHY IP is available as a silicon proven IP in TSMC12nm.
Key features
PHY Features
- HDMI 2.0b standard compliant physical layer
- Up to 6Gbps/ch for 4K2K 60fps
- Calibration sequence of on-chip termination resistor impedance
- Programmable Vdiff / Pre-emphasis levels
- Programmable analog characteristics
- Test / Debug modes, loopback test
LINK Features
- HDMI 2.0b standard compliant LINK layer
- HDCP compliant with 2.2 / 1.4
- Color space conversion
- Supports deep colors
- Audio interface

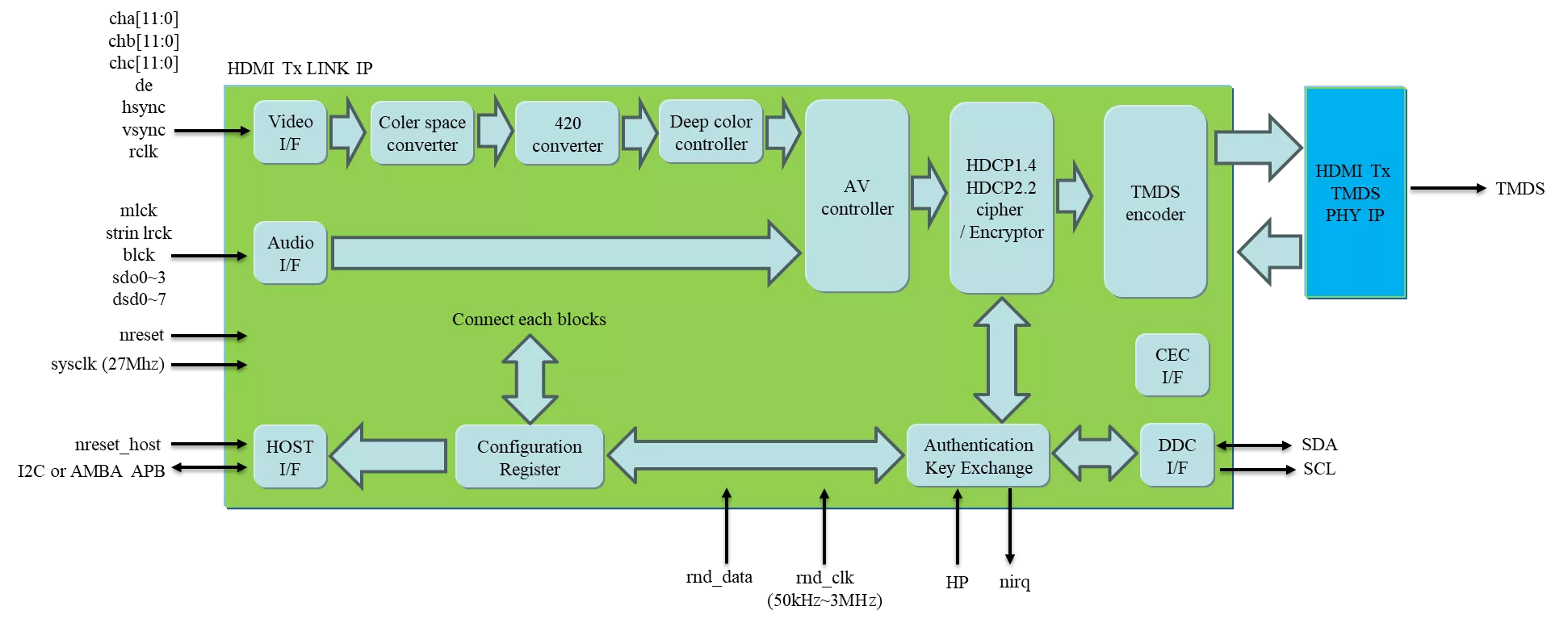

Block Diagram
Click to open fullscreen
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 12nm | FFC | Available on request |
Specifications
Identity
Part Number
HDMI 2.0 Tx
Vendor
Silicon Library Inc.
Type
Silicon IP
Controller / PHY
PHY
Standards & Interfaces
Video Standard
HDMI
