HDMI 2.0 Rx

Silicon Library (SLI) HDMI 2.0 RX IP solution, which consists of PHY analog IP and digital LINK IP, is compliant with HDMI 2.0b standard.

Contact Provider Request Datasheet
PHY HDMI TSMC 40nm G Available on request View all specifications

Overview

Silicon Library (SLI) HDMI 2.0 RX IP solution, which consists of PHY analog IP and digital LINK IP, is compliant with HDMI 2.0b standard. PHY analog IP is provided as a hard macro and LINK IP is provided as a soft macro including synthesizable RTL code. SLI HDMI 2.0 RX PHY IP consists of three data channels, one clock channel and a clock multiplier PLL, and it supports the data rate up to 6Gbps per channel. LINK IP includes HDCP compliant with 2.2 / 1.4. The combination of SLI’s PHY IP and LINK IP ensures that customers easily and securely implement HDMI interface to SoCs.

This PHY IP is available as Silicon proven ‘off-the-shelf’ IP in TSMC40nm. Please download the product brief or contact sales for more detailed information. SLI will accept porting requests from customers.

Key features

PHY Features

  • HDMI 2.0b standard compliant physical layer
  • Up to 6Gbps/ch for 4K2K 60fps
  • Programmable Equalizer Strength
  • Programmable on-chip termination resistor
  • Programable analog characteristics
  • Test / Debug modes

LINK Features

  • HDMI 2.0b standard compliant LINK layer
  • HDCP compliant with 2.2 / 1.4
  • Color space conversion
  • Supports deep colors
  • Audio interface

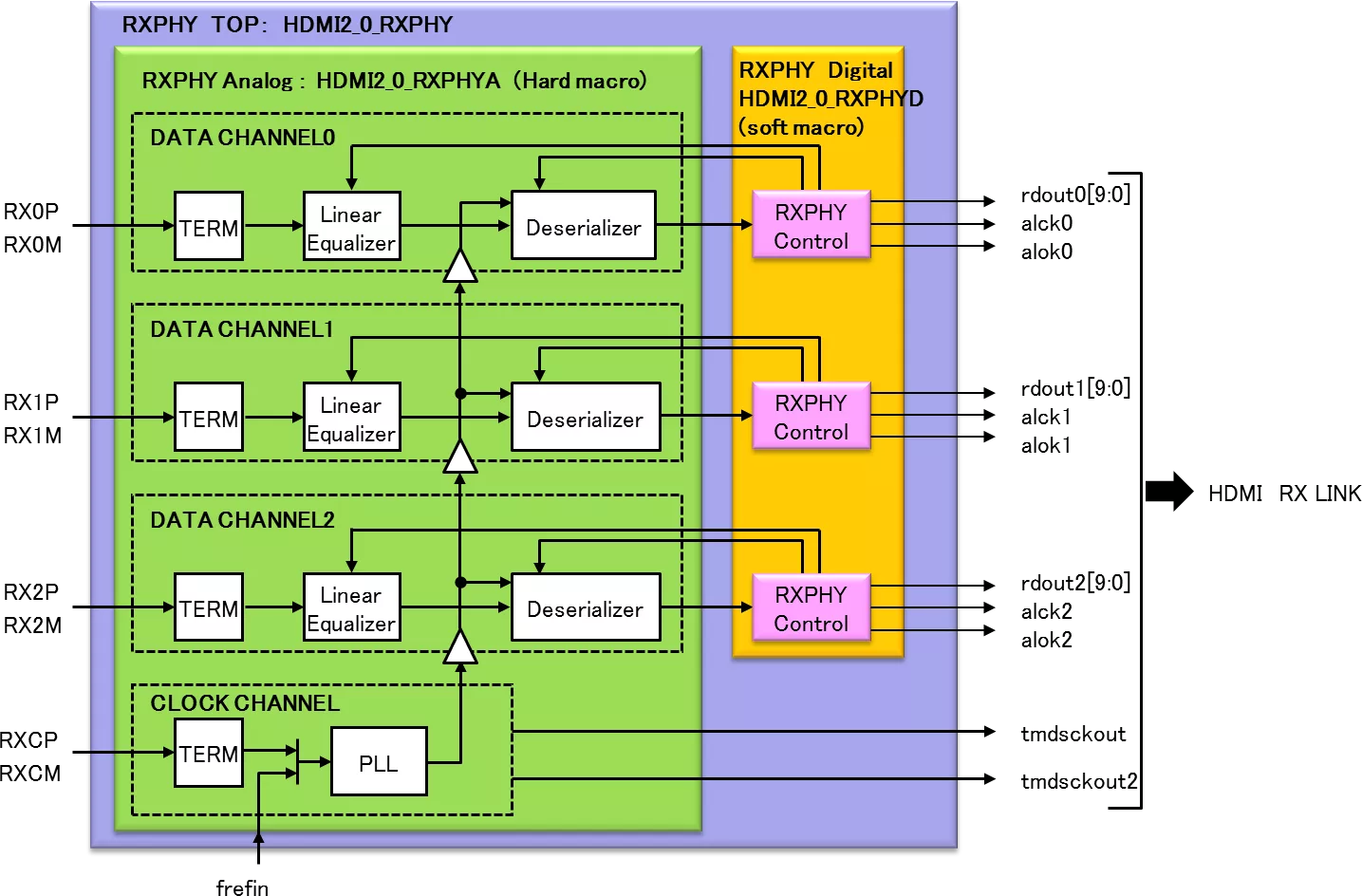

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 40nm G Available on request

Specifications

Identity

Part Number
HDMI 2.0 Rx
Vendor
Silicon Library Inc.
Type
Silicon IP
Controller / PHY
PHY

Standards & Interfaces

Video Standard
HDMI

Files

Product Sheet Download
