Vendor: Techno Mathematical Co., Ltd. Category: Video Processing

H.264/AVC 4K 60p High Profile Decoder

Supports up to 4K 60fps processing.

H.264 / AVC View all specifications

Overview

H.264/AVC is a video compression/decompression Standard standardized by ISO/IEC in 2003, and since then, it has been used in a wide range of fields including digital cameras, surveillance cameras, and broadcasting equipment. Nowadays, in order to downsize the equipment, reduce the costs, and consider the environment, there is a need for smaller encoders and decoders with low power consumption.

TMC has developed a compact, low-power encoder/decoder that maintains high image quality and performance.

Specification

Supported Standards Compliant to ISO/IEC14496-10, ITU-T Rec. H.264, High Profile
Maximum Performance 4K60fps
Image Format YCbCr 4:2:0
Image Bit Depth 8 bits
Output Format Byte stream format (Annex B)
External Memory Interface AXI4

This IP supports both color spaces of YCbCr and YUV.

Key features

  • Supports up to 4K 60fps processing.
  • Up to 4K30fps processing is possible on FPGA. (e.g. Arria10 series, Kintex Ultrascale(+) series, with support for devices from Lattice, Efinix, and Microchip)
  • The AXI Bus is equipped as standard for external memory access for easy integration.
  • Based on elemental technologies that have been used in the digital cameras for many years, we have successful results in high image quality and low power consumption.

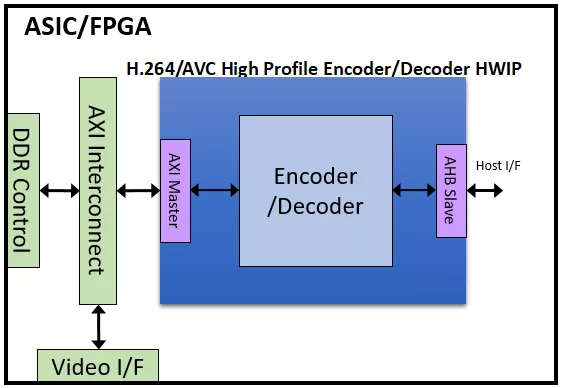

Block Diagram

Click to open fullscreen

Benefits

  • TMC's DMNA (Digital Media New Algorithm), our original mathematical algorithm, drastically reduces the total amounts of calculations & operations, and realizes high-speed processing, high-quality image output, and low power consumption.

Applications

  • #NAME?

What’s Included?

  • Encrypted RTL
  • Datasheets
  • Verification environment
  • Synthesis constraint
  • Bit accurate model

Specifications

Identity

Part Number
TM21936
Vendor
Techno Mathematical Co., Ltd.
Type
Silicon IP

Compute

Codec Standard
H.264 / AVC

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
