Fully Digital Glitch Free PLL TSMC 16FFC 16 nm - 300-3000 MHz

A programmable fully digital PLL designed to lock to an incoming clock source and produce an output clock.

Contact Provider Request Datasheet
TSMC 16nm FFC Pre-Silicon View all specifications

Overview

A programmable fully digital PLL designed to lock to an incoming clock source and produce an output clock. It is ideal as a clock generator for digital designs, but not intended for analog blocks like ADC/DAC or SERDES clocking. This digital PLL has ultra-low area and low implementation charges due to predictable digital design.

Key features

  • Ideal as a clock generator for digital design
  • Excellent frequency jitter performance
  • Ultra-low area fully digital PLL design
  • Patented glitch free frequency adjustment
  • Fine frequency precision with fractional divider
  • Low implementation charges due to predictable digital design
  • Can be implemented on all modern TSMC processes (HPC+ 28 nm, 16FFC 16 nm, N7+ 7 nm)

Block Diagram

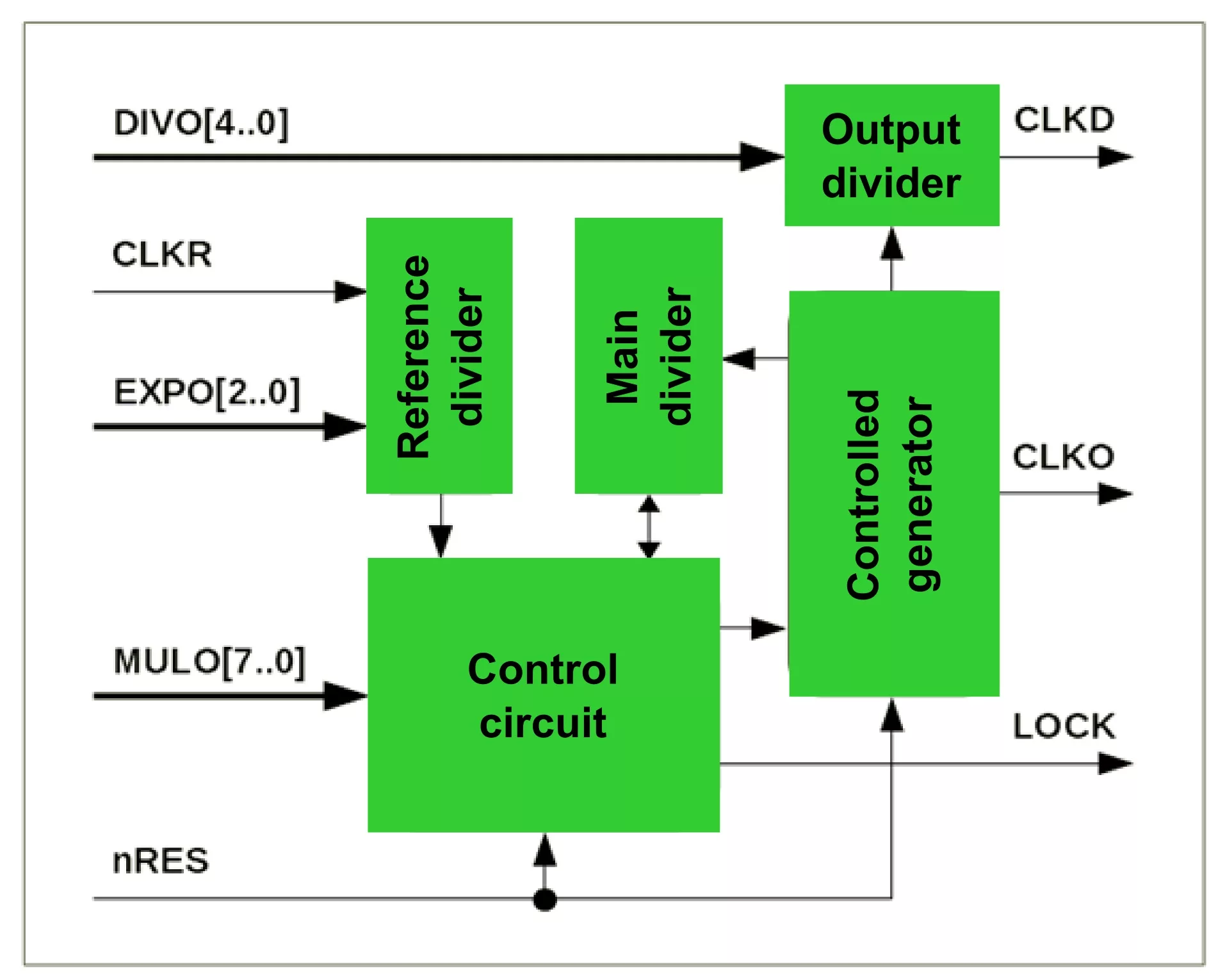

EPC FDPLL16FFC 16 nm block diagram

Benefits

  • Fully digital PLL design
  • Low implementation charges due to predictable digital design
  • Low complexity
  • Competitive price

Applications

  • It is ideal as a clock generator for digital designs, but not intended for analog blocks like ADC/DAC or SERDES clocking. For example, SoC prototypes for mobile applications and IoT.

What’s Included?

  • GDSII (100% DRC and LVS clean)
  • Verilog model
  • LEF
  • User integration Guidelines

Silicon Options

Foundry Node Process Maturity
TSMC 16nm FFC Pre-Silicon

Specifications

Identity

Part Number
EPC FDPLL16FFC 16 nm
Vendor
Engineering Physics Center of MSU
Type
Silicon IP
