F-Tile PCIe Hard IP

The F-Tile Intel® Hard IP supports PCIe* configurations up to 4.0 x16 in Endpoint (EP), Root Port (RP), and Transaction Layer (TL…

Contact Provider Request Datasheet

Overview

The F-Tile Intel® Hard IP supports PCIe* configurations up to 4.0 x16 in Endpoint (EP), Root Port (RP), and Transaction Layer (TL) Bypass Modes. F-Tile serves as a companion tile for Agilex™ 7 devices.

Standards & Specifications Compliance

  • PCIe Base Specification Revision 4.0
  • Single Root I/O Virtualization and Sharing Specification, Rev 1.1
  • Address Translation Services, Revision 1.1
  • PHY Interface for PCIe Architectures, Version 4.0
  • Virtual I/O Device (VIRTIO) Version 1.0

Key features

  • Features
    • Includes a complete protocol stack including the Transaction, Data Link, and Physical Layers implemented as Hard IP
    • PIPE mode support
    • Natively supports PCIe* 4.0/3.0 configurations with support for 2.0/1.0 configurations support via link down-training
    • Supports Root Port and Endpoint modes
    • Support for TL-Bypass mode to enable either Up-port or Down-port functionality for working with fabric-based PCIe Switch IP
    • Various multilink EP, RP modes in lower width x4, x8 configurations available
    • Up to 512-byte Maximum Payload Size (MPS)
    • Up to 4096-byte (4 KB) Maximum Read Request Size (MRRS)
    • Single Virtual Channel (VC) Support
    • Supports Completion Timeout Ranges through Completion Timeout Interface
    • Atomic Operations (FetchAdd/Swap/CAS)
    • Support for various clocking modes: Common Reference Clock (refclk), Independent Reference Clock (refclk) with and without Spread spectrum (SRIS, SRNS)
    • Advanced Error Reporting
    • Precision Time Management (PTM)
    • ECRC generation and checking
    • Supports D0 and D3 PCIe power states
    • Lane margining at receiver
    • Retimers presence detection
    • Supports autonomous Hard IP mode that allows the PCIe Hard IP to communicate with the Host before the FPGA configuration and entry into user mode are complete
    • FPGA core Configuration via PCIe link (CVP Init and CVP Update) and Partial Reconfiguration (PR) over PCIe link
  • Multifunction and Virtualization Features
    • SR-IOV support (8 PFs, 2K VFs per each Endpoint)
    • VirtIO support via configuration intercept interface
    • Scalable I/O and Shared Virtual Memory (SVM) support
    • Access Control Service (ACS)
    • Alternative Routing-ID Interpretation (ARI)
    • Function Level Reset (FLR)
    • Support for TLP Processing Hint (TPH)
    • Address Translation Services (ATS)
    • Process Address Space ID (PasID)
  • User Interface Features
    • Avalon® Streaming Interface (Avalon-ST)
    • User packet interface with separate header, data, and prefix
    • Dual segmented user packet interface with the ability to handle up to two TLPs in any given cycle (x16 core only)
    • Extended Tag Support
    • 10-bit Tag Support (maximum of 768 outstanding tags (x16) / 512 outstanding tags (x4/x8) at any given time, for all functions combined)

Block Diagram

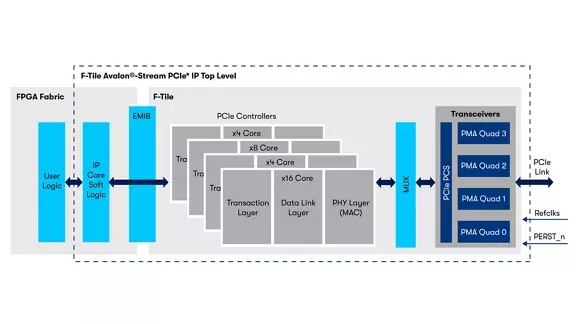

F-Tile PCIe Hard IP block diagram

Specifications

Identity

Part Number
F-Tile PCIe Hard IP
Vendor
Altera
Type
Silicon IP

Files

Product Sheet Download
