DVB-S2X Demodulator

The DVB-S2X demodulator is a low-complexity high-performance solution that allows for symbol rates of up to 100 MSymb/s on state-of-the-art FPGAs and performs all tasks of an inner receiver. The demodulator expects the quantized, complex baseband samples from an analog-digital-converter (ADC) and recovers timing, frequency and phase of the complex mapped symbols. In addition, the core handles PL frame recovery and PL de-framing. The demodulator’s output perfectly fits the Creonic DVB-S2X forward error correction IP core that implements LDPC and BCH decoding.

DVB-S2X is the next generation satellite transmission standard which is an extended version of its well established predecessor DVB-S2. The new specification allows for spectral  efficiency gains of up to 50% by offering lower roll-off factors, higher modulations and a finer code rate granularity compared to DVB-S2.

• Compliant with DVB-S2 and DVB-S2X
• Supports ACM, CCM, and VCM modes
• Support for short and long blocks (16,200 bits and 64,800 bits)
• Support for QPSK to 256-APSK
• Support for very low SNR modes (VLSNR) optional
• Output of XFECFRAMEs for further processing by the Creonic FEC decoder

• Validated against 3rd party DVB-S2X modulators

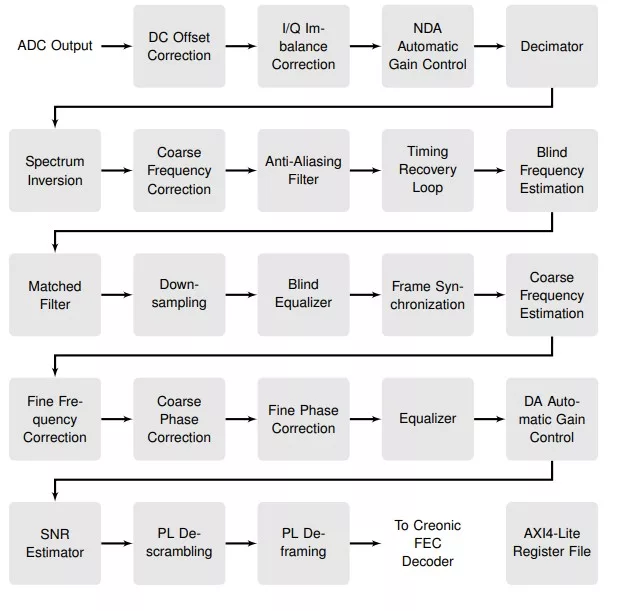

  The demodulator contains radio interface, decimator, timing recovery, equalizer, frame acquisition, and carrier recovery
  Demodulator performs and supports spectrum inversion, DC offset correction, I/Q imbalance correction, decimation, coarse frequency estimation, timing recovery, matched filtering, downsampling, frame synchronization, PL descrambling, fine frequency correction, phase correction, automatic gain control, and PL deframing
  Low-power and low-complexity design
  On-the-fly configuration
  AXI4-Lite interface for controlling the core and retrieving status information
  Very fast synchronization due to different sets of filter coefficients for acquisition and tracking modes
  Configurable interrupts and output of synchronization status information
  Perfectly fits to the Creonic DVB-S2X LDPC/BCH decoder
  Available for ASIC and FPGAs (AMD Xilinx, Intel)
  Deliverables include VHDL source code or synthesized netlist, HDL simulation models, VHDL testbench, and bit-accurate Matlab, C or C++ simulation model
