This satellite tuner is a direct-conversion (zero IF) receiver for digital TV Broadcasting.

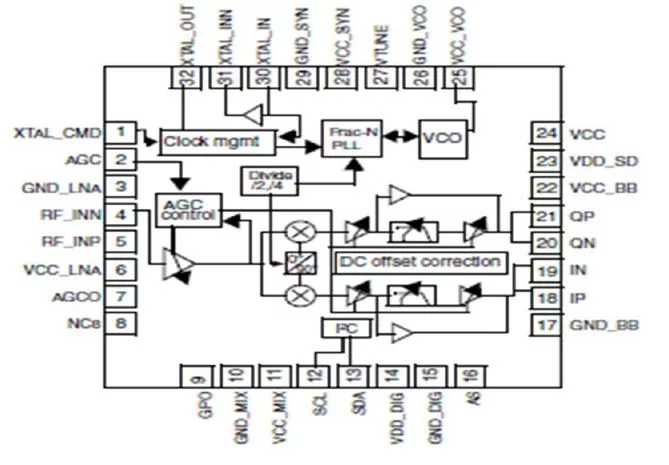

This satellite tuner is a direct-conversion (zero IF) receiver for digital TV Broadcasting. On the RF input, there is a variable gain, low-noise amplifier (VGLNA). The RF gain is monitored by an automatic gain control (AGC) circuit to ensure an optimal signal level for the two mixers. Each mixer, which down-converts the signal to the baseband, is followed by an AGCcontrolled VGA, a low-pass filter and a second VGA. The local oscillator (LO) signals are provided by an integrated fractional-N phase locked loop (PLL), which contains an on-chip voltage-controlled oscillator (VCO) meeting stringent phase noise requirements. The PLL loop filter is partly integrated. The LO frequencies are programmable between 950 MHz and 2150 MHz. The comparison frequency for the phase-frequency detector (PFD) is generated by dividing the crystal oscillator reference frequency. The crystal frequency may be within the range 15 MHz to 31 MHz depending on the application.
DVB S2/S Satellite Tuner SoC White Box IP is a Channel Coding IP core from T2M GmbH listed on Semi IP Hub.
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Channel Coding IP.
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
