Overview

The DB-DMAC-MC2-CS-MM2S-S2MM Verilog RTL IP Core is a Multi-Channel Scatter-Gather DMA Controller that transfers data between AXI4 Memory Map and AXI4-Stream Interfaces.

Descriptor Control is managed by Commands that stream in via dedicated Command, AXI4-Stream Interface, with resulting output Status on Status Stream, AXI4-Stream Interfaces.

The vendor offers two version releases of the DB-DMAC-MC2-CS-MM2S-S2MM:

  •  High AXI bandwidth throughput version with internal control plane that keeps the data interfaces transferring data at the full AXI Interface capabilities.
  •  Nominal bandwidth throughput version requiring less control plane VLSI resources at a lower licensing cost

Key features

  • 2 Dedicated DMA Channels, 1 each for data transfers for the following:
    • MM2S: AXI4-Memory Map Read Data to AXI4-Stream Write Data
    • S2MM: AXI4-Stream Read Data to AXI4-Memory Map Write Data
  • Command and Status via AXI4-Stream Interfaces - 1 set per MM2S & S2MM:
    • Control input via Descriptor Command AXI4-Stream Interfaces
    • Status output via Status AXI4-Stream Interfaces
    • Commands & Status FIFOs for Queuing - Parameters for depth
  • MM2S & S2MM DMA Controllers:
    • Read & Write DMA Controller Engines
    • Data FIFO - Parameters for width and depth
    • Unaligned data transfers with byte realignment & using byte strobes
    • Releases versions supporting high or nominal AXI bandwidth throughput, with tradeoff in control plane VLSI resources and licensing cost
  • Individual Interface Data Widths: 8 / 16 / 32 / 64 / 128 / 256 / 512 / 1024.
  • Programmable Data Burst Capability: 1, 4, 8, 16 (fixed) and 1 – 256 (AXI4)
  • 4 KB boundary crossing detection & resizing of AXI transaction
  • Compliance with AMBA Specifications:
    • AXI4 Protocol Specification (Memory Map Read/Write Channels)
    • AXI4-Stream Protocol Specification
  • Fully synchronous, synthesizable Verilog RTL core, with rising-edge clocking, no gated clocks, and no internal tri-states, for easy integration into FPGA or ASIC design flows.

Block Diagram

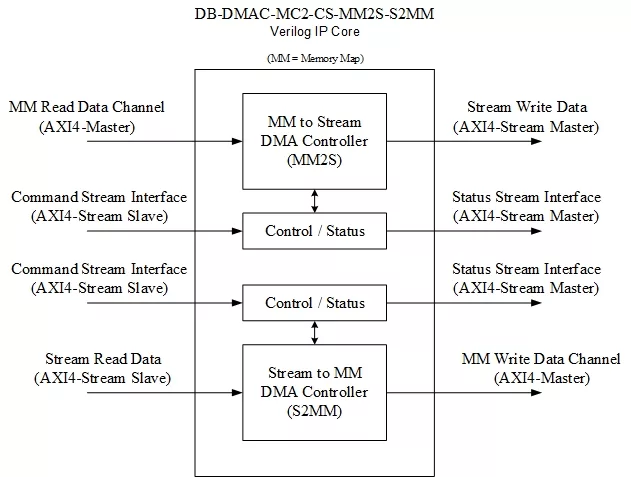

DB-DMAC-MC2-CS-MM2S-S2MM block diagram

What’s Included?

  • Verilog RTL Source or technology-specific netlist.
  • Comprehensive testbench suite with expected results.
  • Synthesis scripts.
  • Installation & Implementation Guide.
  • Technical Reference Manual.
