DisplayPort (DP) 1.4a / Embedded DisplayPort (eDP) 1.4a RX PHY

The DP/eDP Combo RX PHY IP is compliant to the DisplayPort v1.4a and embedded DisplayPort v1.4a.

Contact Provider Request Datasheet
PHY View all specifications

Overview

The DP/eDP Combo RX PHY IP is compliant to the DisplayPort v1.4a and embedded DisplayPort v1.4a. It consists of configurable numbers of (1, 2, or 4) main link channels and one AUX channel. It supports the main link speed rates from RBR(1.62Gbps) to HBR3(8.1Gbps) and 1Mbps Manchester II coding for the AUX channel.

It consolidates internal and external connection methods to reduce device complexity, supports necessary features for key cross-industry applications, and offers scalable performance, enabling next-generation displays with Larger color depths, refresh rates, and resolutions.

Key features

  • Compliant to DP v1.4a and eDP v1.4a
  • Consists of four main link channels, one AUX channel, and one common lane
  • Supports 1, 2, or 4 lanes at 1.62 Gbps (RBR), 2.7 Gbps (HBR), 5.4 Gbps (HBR2), and 8.1 Gbps (HBR3) for DP
  • Supports 1, 2, or 4 lanes at 1.62 Gbps, 2.16 Gbps, 2.43 Gbps, 2.7 Gbps, 3.24 Gbps, 4.32 Gbps, 5.4 Gbps and 8.1 Gbps for eDP
  • Supports Advanced Link Power Mode (ALPM)
  • Built-in self-test (BIST), internal loopback, and external PHY-to-PHY link test
  • Adaptive continuous time linear equalizer (CTLE) and decision feedback equalization (DFE)
  • Built-in on chip eye opening monitor (EOM)

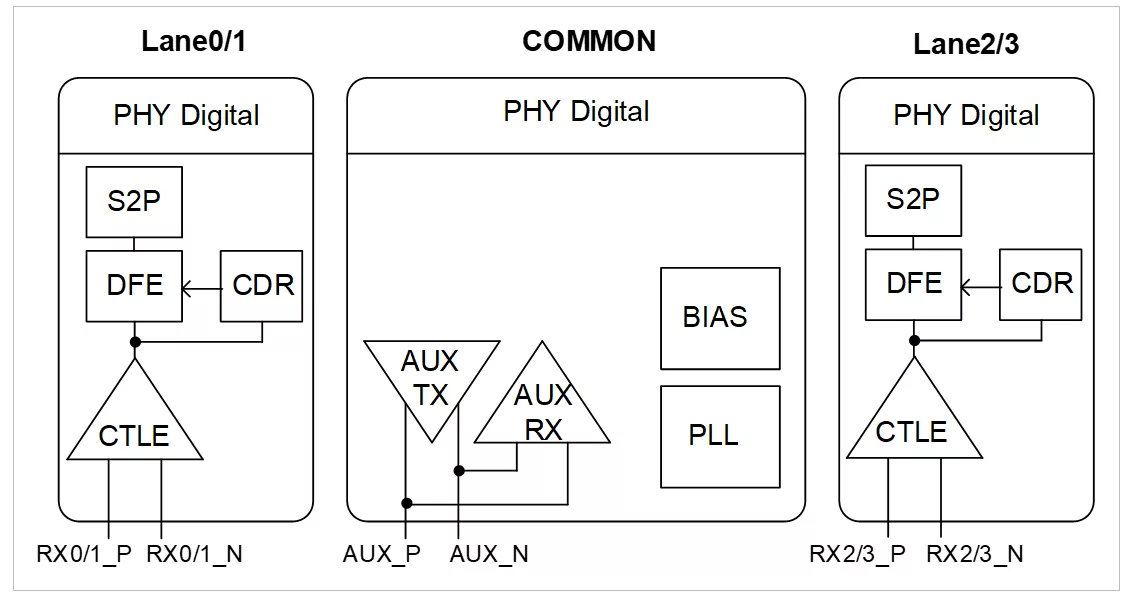

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
DP/eDP 1.4 RX
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider
