DDR3 SDRAM Controller

The Lattice Double Data Rate (DDR3) Synchronous Dynamic Random Access Memory (SDRAM) Controller is a general-purpose memory contr…

Controller DDR3 View all specifications

Overview

The Lattice Double Data Rate (DDR3) Synchronous Dynamic Random Access Memory (SDRAM) Controller is a general-purpose memory controller that interfaces with industry standard DDR3 memory devices/modules compliant with JESD79-3, DDR3 SDRAM Standard, and provides a generic command interface to user applications. The DDR3 SDRAM is the next-generation DDR SDRAM memory technology which features faster speed, mitigated SSO, and reduced routing due to “fly-by” routing signals to SDRAM instead of low skew tree distribution. This core reduces the effort required to integrate the DDR3 memory controller with the remainder of the application and minimizes the need to directly deal with the DDR3 memory interface.

DDR3 SDRAM Controller IP Core Pinout Generation Utility

The DDR3 Pinout Generation Utility is a GUI tool capable of generating the pinout and preference files that contain information for a design that uses the DDR3 SDRAM Controller IP core. More information about this utility, including downloads and documentation is available here.

Key features

  • Support for all LatticeECP3 “EA” devices
  • Interfaces to Industry Standard DDR3 SDRAM components and modules compliant with JESD79-3, DDR3 SDRAM Standard
  • Interfaces to DDR3 SDRAM at speeds up to 400 MHz / 800 Mbps in -8 speed grade devices
  • Supports memory data path widths of -8, -16, -24, -32, -40, -48, -56, -64 and -72 bits
  • Supports x4, x8, and x16 device configurations
  • Support for unbuffered DDR3 DIMM and DDR3 RDIMM module
  • Supports up to one DIMM and two ranks per DIMM
  • Programmable burst lengths of 8 (fixed), chopped 4 or 8 (on-the-fly), or chopped 4 (fixed)
  • Programmable CAS latency
  • Programmable CAS Write Latency
  • Read burst type of nibble sequential or interleave
  • Supports automatic DDR3 SDRAM initialization and refresh
  • Automatic Write Leveling for each DQS for DIMM applications. Option to switch of write leveling for On-board memory applications.
  • Supports Power Down Mode
  • Supports Dynamic On-Die Termination (ODT) controls
  • Termination Data Strobe (TDQS) for x8 widths only
  • LatticeECP3 I/O primitives manage read skews (Read Leveling equivalent)
  • Automatic Programmable Interval Refresh or User Initiated Refresh
  • Option for controlling memory reset outside the controller

Block Diagram

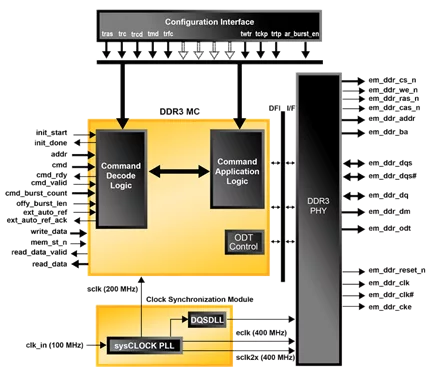

DDR3 block diagram

Specifications

Identity

Part Number
DDR3
Vendor
Lattice Semiconductor Corp.
Type
Silicon IP
Controller / PHY
Controller

Standards & Interfaces

Memory
DDR3

Files

Product Sheet Download
