D2D UCIe 1.0
The Die-to-Die interface is a functional block that provides a data interface between two chip dies in the same package.
Overview
The Die-to-Die interface is a functional block that provides a data interface between two chip dies in the same package. MSquare's M2LINK D2D Solution, which is compatible with the UCIe v1.0 specification, includes both a Die-to-Die adapter layer and a physical layer. Each layer features a sideband interface that provides a back-channel for link training and register access of the link partner, as shown in Figure 1. This Unique hybrid analog/digital architecture offers low power consumption, compact footprint, and robust performance, making it highly suitable for applications in high-performance computing, AI, multimedia SoCs, and Die-to-Die interconnections.
Key features
- Compatible with UCIe v1.0 specification
- Single-ended, source synchronous and DDR IO Signaling
- Supports 32 bits(16bits TX + 16bits RX) data bus per module for standard package
- High clock frequency, up to 8GHz
- 16 Gbps/lane data rate
- 512Gbps (256Gbps TX + 256Gbps RX) bandwidth per module for standard package
- High energy efficiency with ~0.8pJ/bit for standard package
- Built in Test and diagnostics (Functional(PRBS), scan, at speed external loopback)
- The advanced process of 12nm
Block Diagram

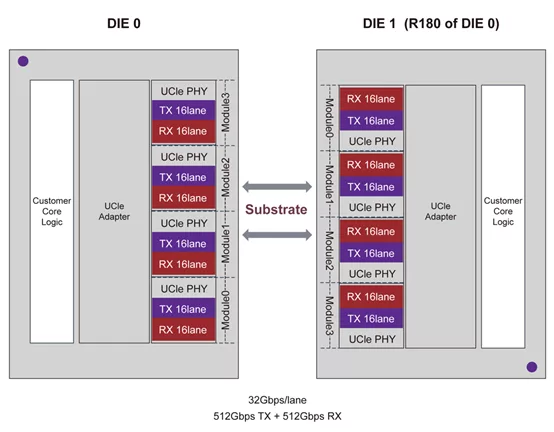

D2D UCIe 1.0 block diagram
Specifications
Identity
Part Number
D2D UCIe 1.0
Vendor
MSquare
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
China
