Vendor: Digital Blocks, Inc. Category: MIPI

Camera Interface (AHB Bus)

The DB1881AHB IP Core interfaces a Camera CMOS Image Sensor to Frame Buffer Memory via the AMBA AHB Interconnect.

Contact Provider Request Datasheet

Overview

The DB1881AHB IP Core interfaces a Camera CMOS Image Sensor to Frame Buffer Memory via the AMBA AHB Interconnect. The DB1881AHB process either RAW Bayer or CCIR656 YCbCr and bursts the video to AHB memory. From there a Display Controller (such as the DB9000) drives the display panel.

The DB1881AHB is a Verilog IP Core targeting FPGA, ASIC, or ASSP devices. Figure 1 depicts the system view of the DB1881AHB Camera Interface IP Core embedded within an integrated circuit device.

Key features

  • Camera Interface Options:
    • RAW Bayer:
      •  Parallel CMOS 8/10-bit Data
      •  Vsync, Hsync, Pixel Clock
    • CCIR656:
      • Serial ITU-R BT.656 Encoded Frame, 8/10-bit Data
      •  Clock
    • Resolutions up to 1920x1080p FHD @ 60 fps
  • Video Signal Processing (from RAW Bayer or CCIR656):
    • RAW Bayer Pixel Defect Detection & Correction
    • RAW Bayer Demosaicing – bilinear interpolation
    • CCIR656 Frame Decoder - Outputs ITU-R BT.601 4:2:2 YCbCr
      •  Chroma Resampler – Up-converts 4:2:2 YCbCr to 4:4:4 YCbCrsampling (optional)
      •  Color Space Conversion (optional):
        • Converts 4:4:4 YCbCr to 4:4:4 RGB
        • FIR Filter with Programmable Coefficients
    • Both RAW Bayer Demosaicing and CCIR656 Frame Decoder outputs Vsync to DMAC. For CCIR656 Frame Decoder, delay added to Vsyncoutput to correspond to pixel delay through Chroma Resampler and ColorSpace Conversion pipelines.
  • Output Buffer:
    • Dual-clock FIFO supporting clock-domain crossing
    • configurable in depth and width
  • DMA Controller:
    • Four (4) programmable Base Address Registers supporting 1-4 Frame Buffers: Single, Dual Ping-Pong, 1-2-3 and 1-2-3-4 circular
    • Burst data to Frame Buffer via AHB Master Bus
  • AHB Master Interface – DMAC bursts video samples under DMAC control to Frame Buffer Memory:
    • 32-bit interface, supporting data writes only (64/128/256-bit data interfaces available)
    • INCR, INCR4, INCR8, and INCR16 word bursts
    • Generates address sequences for unspecified and fixed-length bursts
    • Generates HBUSREQM requests and monitors & responds to HGRANTM grant and HREADYM
    • Asserts interrupt MBE error response during bursts
  • AHB Slave Interface – Processor interface to Control/Status Registers:
    • Two cycle address & data phases
    • 32-bit data interface, supporting both reads/writes
    • SINGLE word burst
    • OKAY response only
    • Full AHB or AHB-Lite
  • Interrupt Controller:
    • 5 sources of internal interrupts (more to be identified)
    • Interrupt Status, Mask, Vector Registers
  • Compliance with following AHB Specifications:
    • AMBA Specification Rev 2.0 (AHB Full Protocol for Master & Slave will be used)
    • AMBA 3 AHB-Lite V1.0 (AHB-Lite Protocol is an option)
  • Fully-synchronous, synthesizable Verilog RTL core, with rising-edge clocking, No gated clocks, and No internal tri-states.

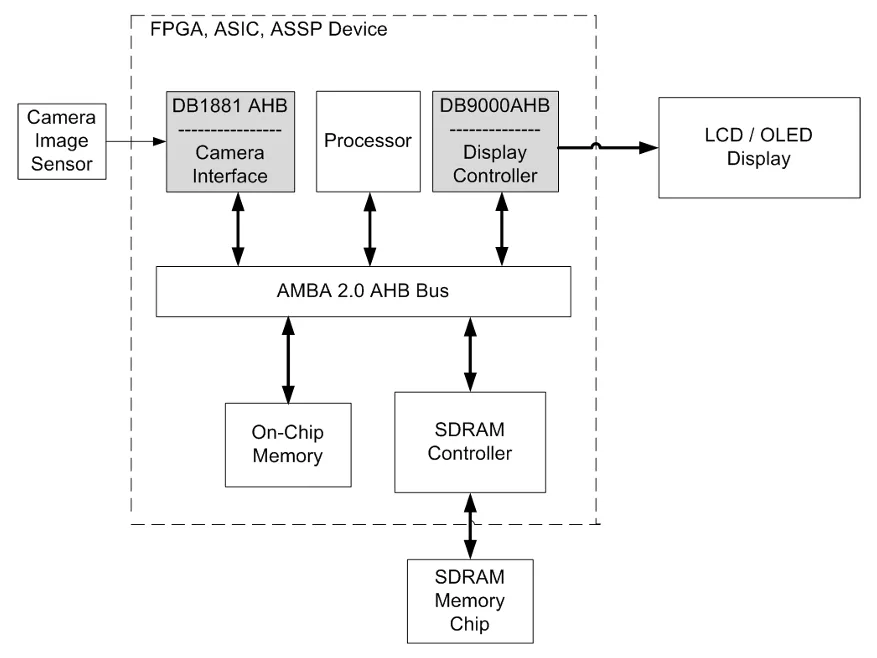

Block Diagram

DB1881 block diagram

What’s Included?

  • The DB1881AHB is available in RTL Verilog-2001, along with synthesis scripts, a simulation test bench with expected results, datasheet, and user manual.

Specifications

Identity

Part Number
DB1881
Vendor
Digital Blocks, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Digital Blocks, Inc.
