BitBLT Graphics Hardware Accelerator (AXI Bus)

The DB9100AXI BitBLT Graphics Hardware Accelerator Verilog IP Core renders a graphics frame by generating new bitmaps from comman…

Overview

The DB9100AXI BitBLT Graphics Hardware Accelerator Verilog IP Core renders a graphics frame by generating new bitmaps from commands to combining existing bitmaps on and off-screen using one of 256 Raster Operations. A Raster Operation (ROP) is a bitwise Boolean operation (such as AND, OR, XOR, NOT).

The DB9100AXI also contains a Monochrome Bitmap Color Expansion feature, typically used for font expansion of compressed character bitmaps. A 1-bit depth bitmap is expanded to one of two colors, a foreground or background color, with the foreground color representing the text, and the background color the non-text background.

The DB9100AXI also contains a programmable Alpha Blend unit, blending two bitmaps into one.

The DB9100AXI interfaces to a microprocessor and frame buffer memory via the AMBA AXI Interconnect, providing high performance memory throughput. The DB9100AXI contains a DMA Command Linked-List Processing Unit, for independently reading and processing graphics commands from the host processor.

Key features

  • Bit Block Transfer – 3 Independent Memory Sources of data:
    • On-Screen & Off-Screen Data Block (SRC)
    • Off-Screen Fixed Pattern Data Block (PTN)
    • On-Screen visible Data Block (DST)
  • Raster Operations (ROP) performed on Block Transfers:
    • 256 Raster Operations
    • ROP0, ROP1, ROP2, & ROP3 operations
    • Includes industries most popular 16 ROPs
  • BitBLT Draw Features:
    • Pixels, Horizontal & Vertical Lines
    • Overlapping & Non-Overlapping Block Transfers
    • Solid Color Block Fills
    • FONT Monochrome Bitmap to Color Expansion, either Transparent or Opaque
    • Rotation Block Transfers: 0, 90, 180, 270 degrees
    • Block Stretch on X & Y Axis
    • Alpha Blending
    • Sprite Moves
  • Command FIFO or Link-List Display Processing Unit:
    • Simplifies Processor Interface
    • Minimizes Processor Overhead
  • Frame Buffer & Display Features Supported:
    • Display Resolutions 4K x 4K
    • 4 GB Memory Range
    • 8, 16 , 24, & 32 bits-per-pixel color depths
  • Interrupt Controller with 3 sources of internal interrupts with masking control
  • Reference Software Driver Included
    • Reference Driver
    • Graphics API Reference Design
  • On-Chip Interconnect Compliance - AXI:
    • AMBA AXI Protocol Specification (V1.0)
  • FPGA Integration Support:
    • Altera Quartus II & Qsys Integration & ARM / NIOS II EDS Reference Design
    • Xilinx Vivado IP Integrator & Reference Design
  • ASIC / ASSP Design-In Support:
    • Compliance to RTL Design, Coding, & Verification Standards
    • Digital Blocks Support Services
  • Compatible with Digital Blocks DB9000 Family of TFT LCD Controller IP Cores and Reference Designs
  • Fully-synchronous, synthesizable Verilog RTL core.

Block Diagram

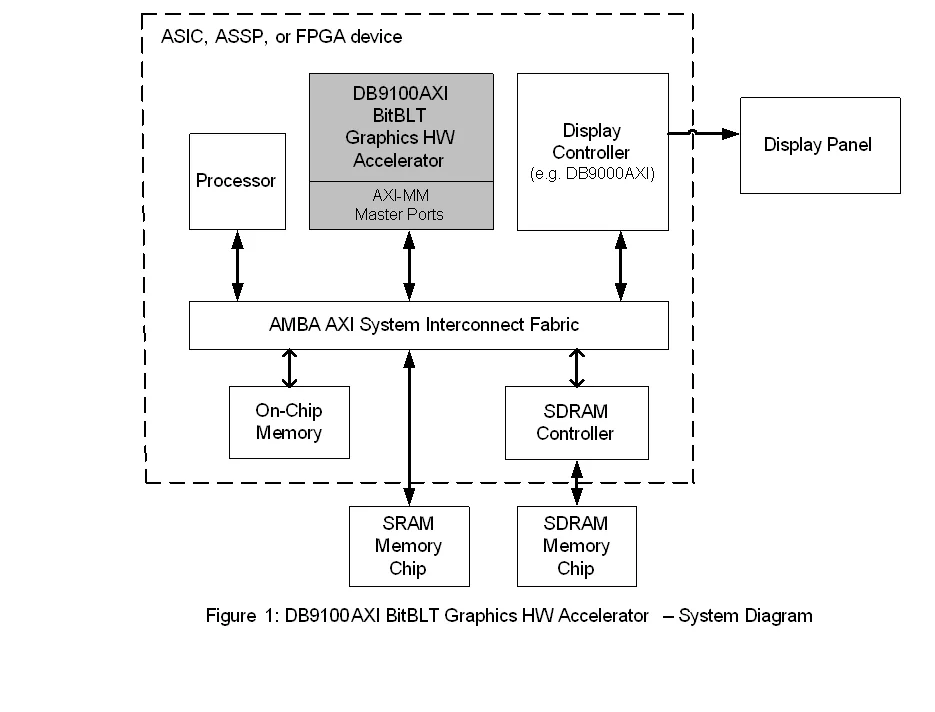

DB9100AXI block diagram

Benefits

  • The DB9100 family of BitBLT Graphics Hardware Accelerator IP Cores provides a higher graphics performance than a Host Microprocessor, while offering higher software productivity.

What’s Included?

  • Verilog RTL Source or technology-specific netlist.
  • Comprehensive testbench suite with expected results.
  • Synthesis scripts.
  • Installation & Implementation Guide.
  • Technical Reference Manual.
