Vendor: NTLab Category: Voltage Reference

Bandgap voltage reference (output voltage 0.4 V)

The bandgap voltage reference generates temperature-compensated voltage due to mutual compensation of temperature dependence of b…

Contact Provider Request Datasheet
GlobalFoundries 55nm Silicon Proven View all specifications

Overview

The bandgap voltage reference generates temperature-compensated voltage due to mutual compensation of temperature dependence of bipolar diodes and resistors. It is a simple to configure and operate block, combining good parameters accuracy, small area and low current consumption. The block consists of bandgap, buffer and current sources. The bandgap produces on pin out voltage level around 0.4 V, which adjusted by a trimming codes. The buffer repeats the value of the reference voltage. Signals, en_vbgbuf and en_testmode, control the buffer. Each current source delivers a current of 250 nA.
The block is designed on Global Foundries CMOS 55 nm technology.

Key features

  • Global Foundries CMOS 55 nm
  • Output voltage reference 0.4 V
  • Output currents reference 250 nA
  • Low current consumption
  • Small area
  • Temperature-compensated voltage in a wide temperature range
  • Can be ported to foundries TSMC, UMC, SMIC, iHP, AMS, Vanguard, SilTerra and other also compatible to with different technology nodes (For more information contact NTLab)

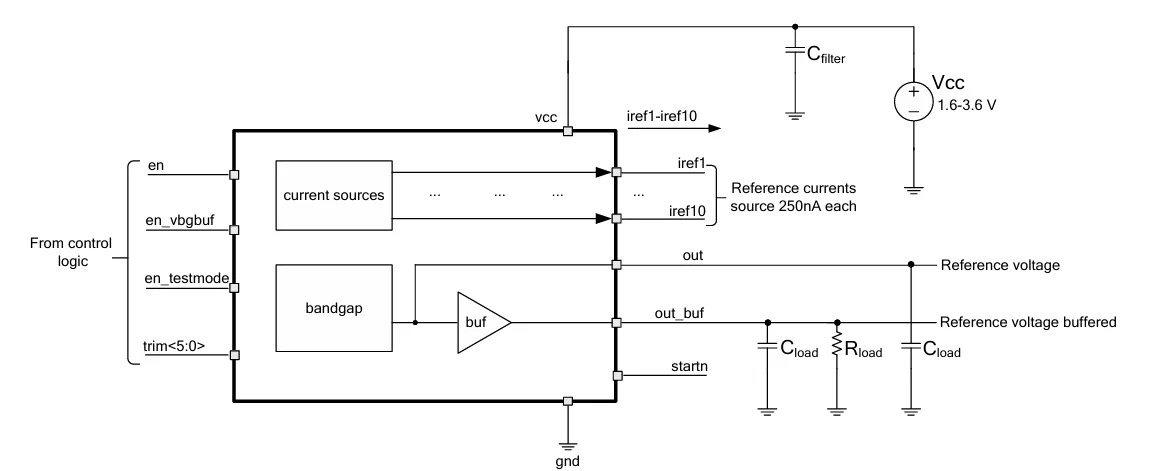

Block Diagram

055GF_BVR_01 block diagram

Applications

  • Voltage regulators
  • Comparison and detection systems
  • System-on-chip for different purposes
  • Measurement and calibration systems
  • Technological research of microelectronic components
  • Navigation systems

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 55nm 55 550 nm Silicon Proven

Specifications

Identity

Part Number
055GF_BVR_01
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
