Vendor: Renesas Category: Analog

Analog Switch with Gate Voltage Booster on TSMC 40nm

Contact Provider Request Datasheet
TSMC 40nm G Available on request View all specifications

Overview

This Analog Switch IP contains 3 cells of Charge Pump, 500Ω Switch and 2kΩ Switch. To ensure the characteristics of the on-resistance at lower power supply voltage, output of the Charge Pumps are used as power supply for analog switches.

Analog switch ：

On Resistance

  • 500Ω：AT4UFASW0000AS500TOP
  • 2kΩ ：AT4UFASW0000AS2KTOP

Charge Pump ：AT4UFASW0000VMTO

Key features

  • Extreme high temperature operation up to 125degreeC.
  • 500Ω on resistance, maximum. (AT4UFASW0000AS500TOP)
  • 2kΩ on resistance, maximum. (AT4UFASW0000AS2KTOP)
  • Rail-to-rail input and output of the Analog Switch.
  • Charge pump operates from 1.6V to 3.6V, and the output is 2.69V to 3.6V.
  • Charge pump can operate on various clock frequency(250kHz～2MHz).

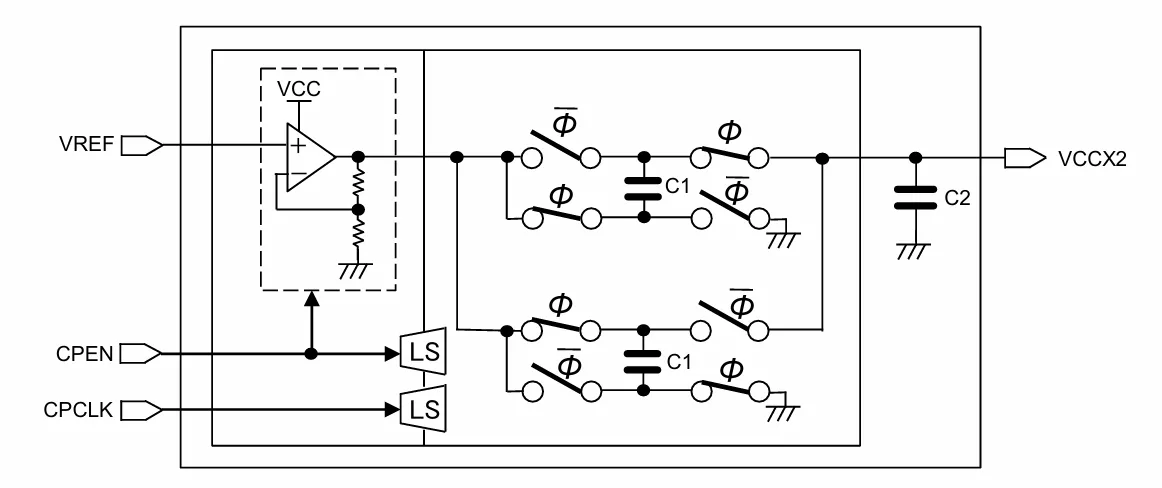

Block Diagram

Click to open fullscreen
1 / 5
Keyboard arrows: ← → • Enter: fullscreen • Esc: close

Silicon Options

Foundry Node Process Maturity
TSMC 40nm G Available on request

Specifications

Identity

Part Number
Analog Switch with Gate Voltage Booster
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan
Contact Renesas
