Alpha Blender

Alpha Blender is used when two video sources have to be viewed at the same time.

Contact Provider Request Datasheet

Overview

Alpha Blender is used when two video sources have to be viewed at the same time. It is a process of combining an image with a background to create the appearance of partial or full transparency.

Key features

  • Blend 2 video source
  • Input format for both the video source: RGB/YCbCr 4:4:4
  • Software programmable Alpha value
  • Pipelined multiplier
  • Latency of 3 clocks

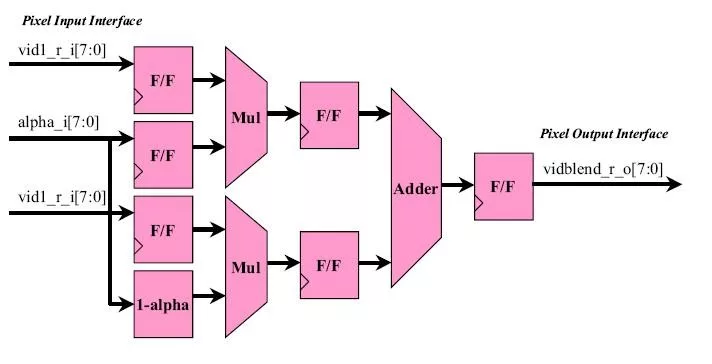

Block Diagram

Alpha Blender block diagram

Benefits

  • Can be used in On Screen Display and Picture in Picture applications
  • Simple design makes it easier to integrate in many FPGA families

Applications

  • Video and image processing applications in Aerospace and Defense, Automotive, Broadcast, Consumer, Industrial and Medical applications

What’s Included?

  • ....

Specifications

Identity

Part Number
Alpha Blender
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
