Vendor: Weasic Microelectronics Category: PLL

8.3 GHz to 10.9 GHz Low phase Noise Fractional-N Synthesizer

The WEA811S45G is a wide band fractional –N frequency synthesizer with the integrated VCOs implemented in the GlobalFoundries 45R…

Contact Provider Request Datasheet

Overview

The WEA811S45G is a wide band fractional –N frequency synthesizer with the integrated VCOs implemented in the GlobalFoundries 45RFSOI process. It uses a reference input ranging from 25 MHz to 300 MHz, with the use of a XTAL buffer / XTAL Oscillator. The WEA811S45Gcan generate an RF signal ranging from 8.3 GHz up to 10.9 GHz frequency range with a bank of 3 integrated VCOs. The synthesizer has the ability to automatically lock into the selected frequency utilizing an algorithm that selects linearly between the various VCOs and binary weights between the 128 bands. The WEA811S45G is powered by 1.8 V supply.

Key features

  • Low phase Noise PLL
  • 1.8 V Supply Voltages
  • RF frequency range: 8.3 GHz to 10.9 GHz
  • Reference input 25 – 300 MHz
  • RF Fractional-N synthesizer
  • GDS ready
  • Area: 1000 um x 1800 um

Block Diagram

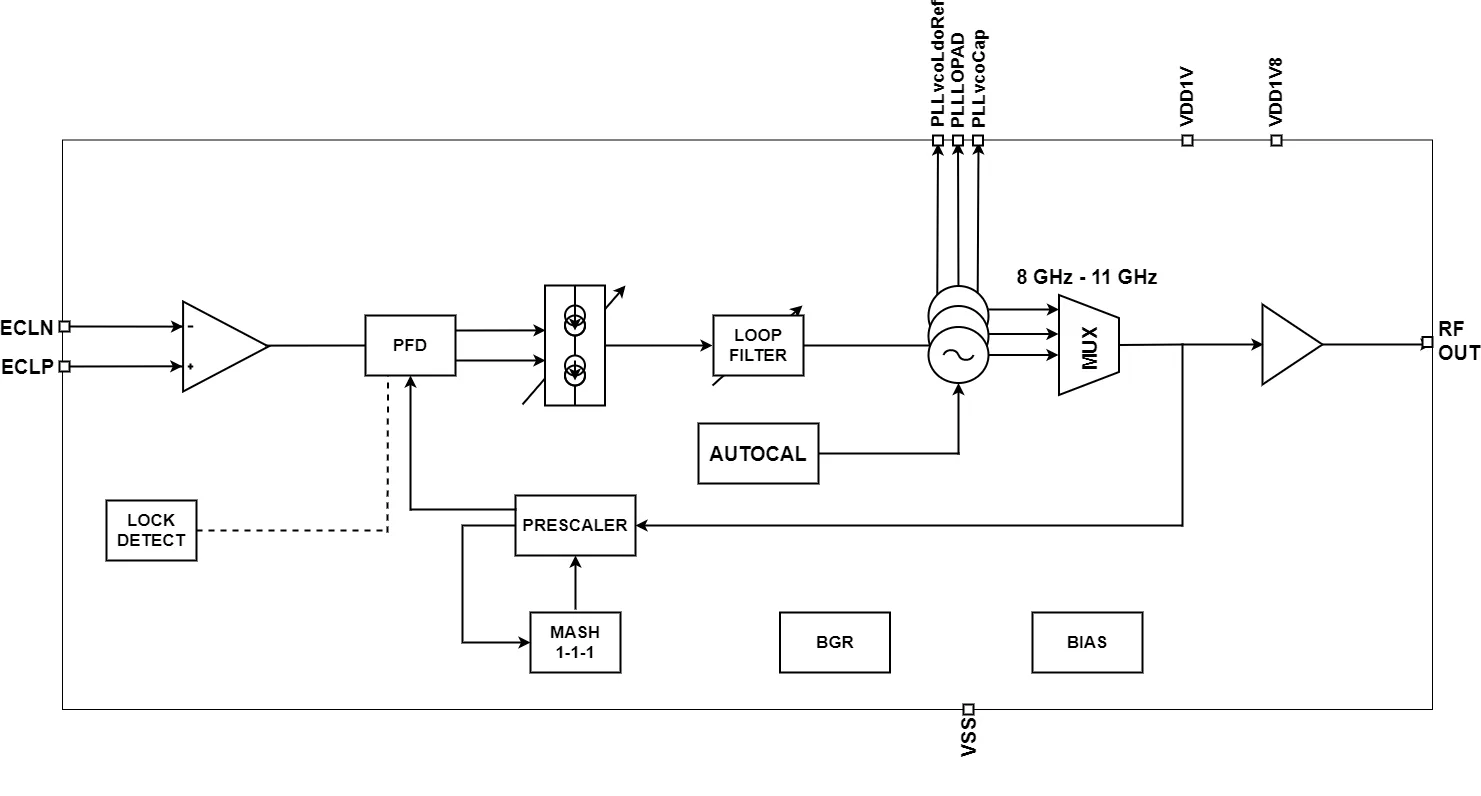

WEA811S45G block diagram

Applications

  • Communications

Specifications

Identity

Part Number
WEA811S45G
Vendor
Weasic Microelectronics
Type
Silicon IP

Files

Product Sheet Download
