Vendor: NTLab Category: Oscillator

7 to 150 MHz digitally controlled oscillator

180SMIC_OSC_02 is an OTA-C based oscillator with both analog and digital outputs.

SMIC 180nm G Silicon Proven View all specifications

Overview

180SMIC_OSC_02 is an OTA-C based oscillator with both analog and digital outputs. Analog differential clock is provided at OUT_P, OUT_N pins, and digital - at OUT_D pin. The block consists of four adjustable OTA, AGC detector and comparator and requires two reference currents of 10uA and 20uA. Frequency adjustment in wide range (from 7 to 150 MHz) is provided by digital control input CTR<6:0>.

Key features

SMIC CMOS 180 nm
Wide oscillation frequency adjustment range (7 MHz…150 MHz)
No external components required
Portable to other technologies (upon request)

Block Diagram

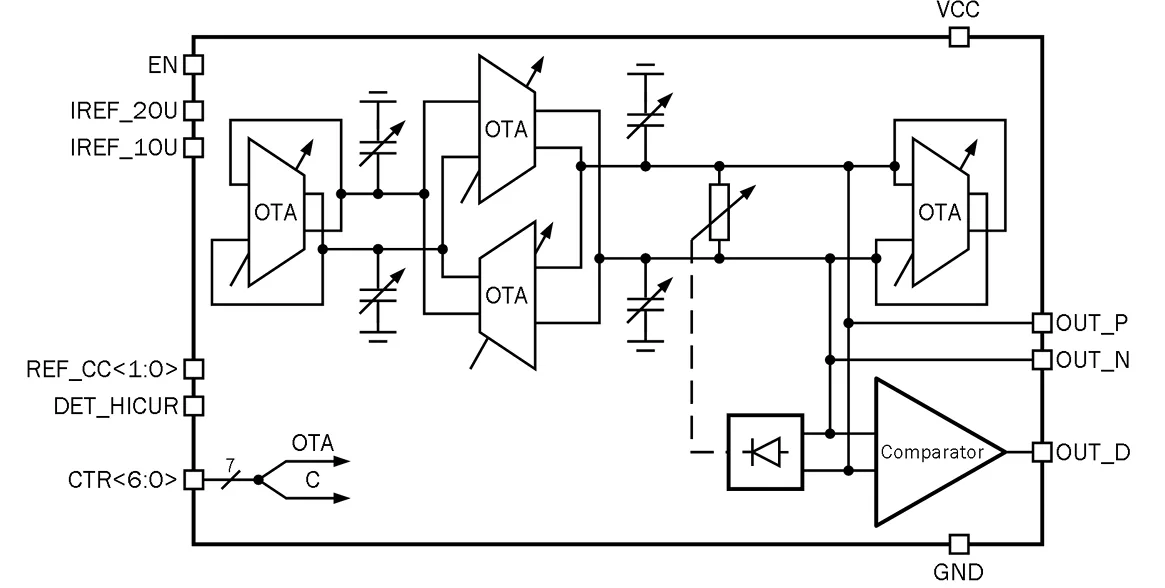

180SMIC_OSC_02 block diagram

Applications

Intermediate frequency signal processing
Navigation systems including multisystems

What’s Included?

Schematic or NetList
Abstract model (.lef and .lib files)
Layout view (optional)
Behavioral model (Verilog)
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation

Silicon Options

Foundry	Node	Process	Maturity
SMIC	180nm	G	Silicon Proven

Specifications

Identity

Part Number

180SMIC_OSC_02

Vendor

NTLab

Type

Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab

HQ: Lithuania
