5.72 GHz to 15.04 GHz Low phase Noise Fractional-N Synthesizer
The WEA615S55S is a wide band fractional – N frequency synthesizer with on Chip doubler implemented in ST BiCMOS55 process.
Overview
The WEA615S55S is a wide band fractional – N frequency synthesizer with on Chip doubler implemented in ST BiCMOS55 process. It uses a 100 MHz to 250 MHz Crystal Input and generates a 5.72 GHz to 15.04 GHz frequency range with the integrated VCOs utilizing a 64 band auto-calibration system. It consists of a an Xtal oscillator, a frequency doubler, a Charge Pump, a low noise phase detector with lock detect indication, 5 bank of VCO, a Prescaler and a 16 to 24 bit MASH 1-1-1. The synthesizer is powered by a 1.2 V and 2.5 V supplies.
Key features
- Low Phase Noise, Low Spur PLL
- Low pin count
- Reference input: 100 MHz to 250 MHz
- Output frequency range: 5.72 GHz to 15.04 GHz with the use of Doubler
- PLL Noise floor: -100 dBc/Hz @ 100 MHz offset @ 11.4 GHz
- Banerjee figure of merit: -224 dBc/Hz
- 2nd harmonic: -25 dBc
- 3rd harmonic: -40 dBc
- Lock time: < 2 us
- Programmable Charge Pump
- Programmable order MASH, 16 to 24 Bit MASH
- Programmable Loop Filter
- Bank of LC-VCOs with 64 Bands/VCO
- Automatic Band Selection System
- Low noise phase detector with lock detect indication
- RF, Analog Supply 2.5 V
- Digital supply 1.2 V
- Consumption: 120 mW
- Area: 4.6 mm2
Block Diagram

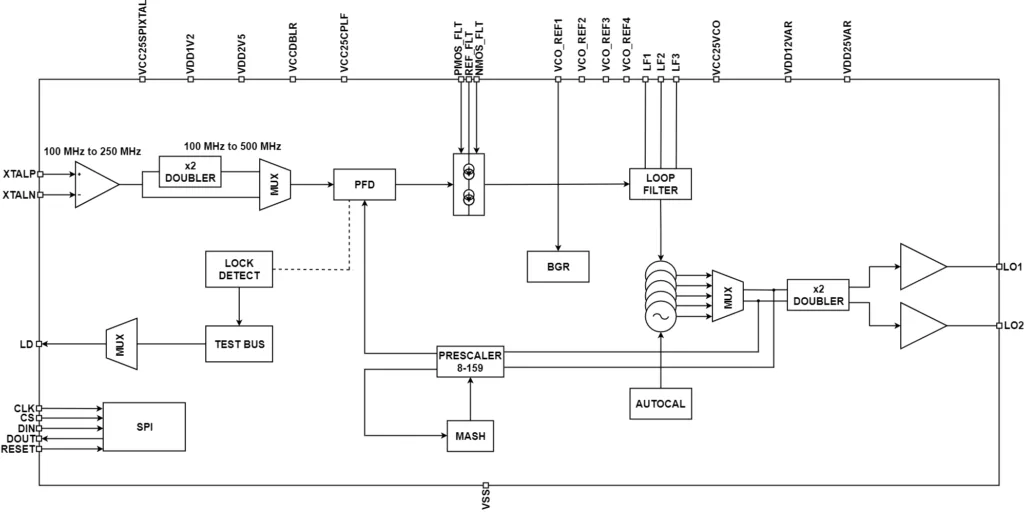

WEA615S55S block diagram
Applications
- 5G
Specifications
Identity
Part Number
WEA615S55S
Vendor
Weasic Microelectronics
Type
Silicon IP
