Vendor:
NTLab
Category:
Temperature Sensor
-40 to +85 °C Temperature sensor
130GF_TS_01 is a Temperature detector with unique solution intended to continuously monitor IC temperature.
Overview
130GF_TS_01 is a Temperature detector with unique solution intended to continuously monitor IC temperature. It converts temperature between -20°C and +45°C to a 10-bit digital word with ±0.5°C accuracy, ±0.3°C accuracy for temperature range +30°C ÷ +45°C and ±1°C accuracy for temperature range -40°C ÷ +85°C. Temperature detector consists of temperature sensor unit, voltage and current reference block, ADC and test block.
Key features
- GF 130nm Embedded EEPROM
- Temperature measurement range: -40÷85°C
- High accuracy of temperature measurements: ±1° at -40÷85°C; ±0.5°C at -20÷45°C and ±0.3° at 30÷45°C
- Clock divider (with 1/32/64/128/256/512/1024/2048 division ratio)
- Up to 50kHz operating conversion frequency
- IO supply voltage: 1.12V÷1.65V
- Conversion time: 35/Fclk
- Low current consumption during measurements: 15uA

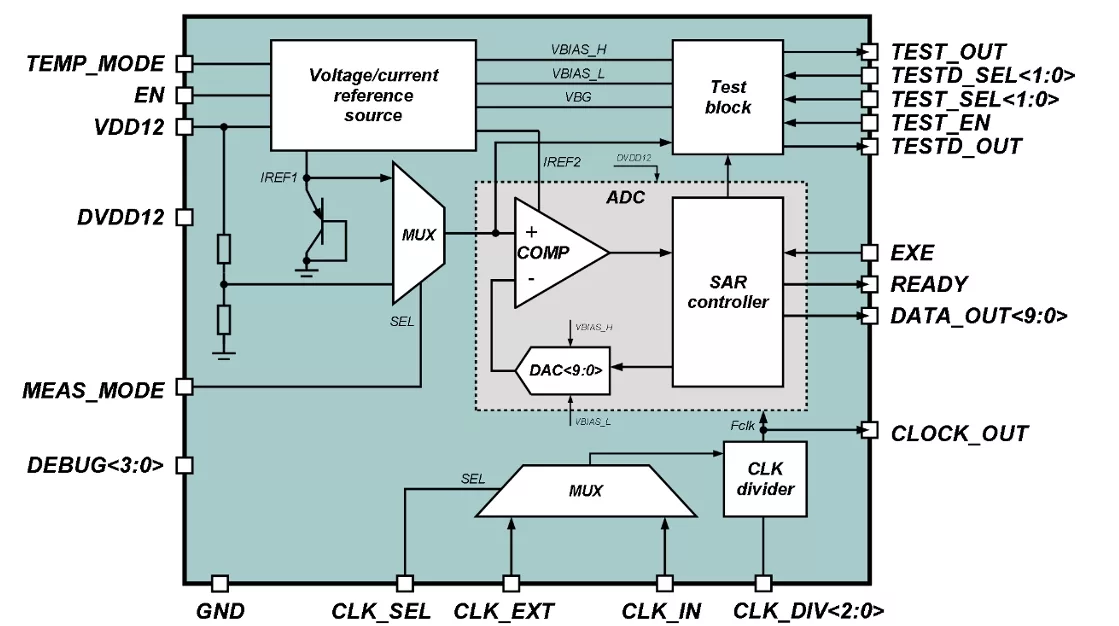

Block Diagram
130GF_TS_01 block diagram
Applications
- Die temperature monitoring
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 130nm | BCD | Pre-Silicon |
Specifications
Identity
Part Number
130GF_TS_01
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
