What is -40 to +125 º? Temperature & Voltage Sensor (Voltage measurement 2.0V - 3.0V)?
-40 to +125 º? Temperature & Voltage Sensor (Voltage measurement 2.0V - 3.0V) is a PVT Monitor IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
PVT Monitor
-40 to +125 º? Temperature & Voltage Sensor (Voltage measurement 2.0V - 3.0V)
T&V Sensor is a unique solution intended to continuously monitor IC status at several on-die locations.
Overview
T&V Sensor is a unique solution intended to continuously monitor IC status at several on-die locations. It is able to perform core voltage and die temperature measurement. T&V Sensor consists of measuring module, core voltage/temperature sensor units. Measuring module is a calculation center which performs temperature-to-digital or voltage-to-digital conversion and is able to maintain up to 8 sensor units of any (voltage/temperature) type. TS_mode carries out selection of measured parameter (voltage or temperature).
Key features
- iHP SiGe BiCMOS 0.25 um
- High accuracy temperature and voltage measurements
- 8 remote core voltage/temperature sensors
Block Diagram

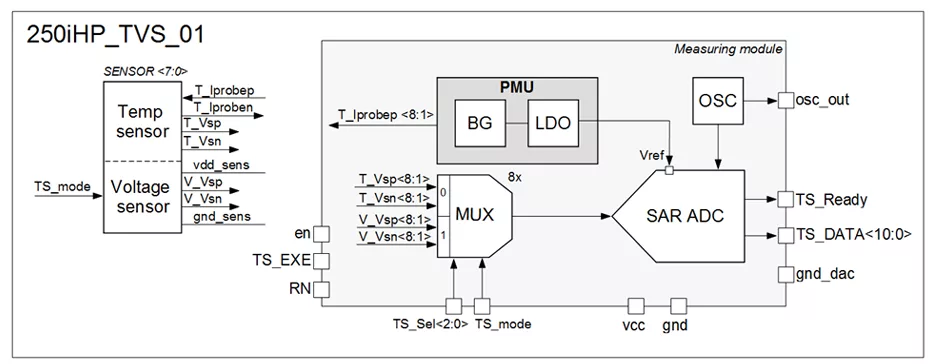

250iHP_TVS_01 block diagram
Applications
- Die temperature monitoring
- System performance detection
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
