2730 to 3782 MHz Voltage controlled oscillator

Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control vol…

TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it .
Frequency range 2730…3782 MHz.
Control voltage: 0.3...2.6 V

Key features

TSMC BiCMOS SiGe 180 nm
Low phase noise
Wide frequency range
Adjustable output amplitude
Low current consumption
Portable to other technologies (upon request)

Block Diagram

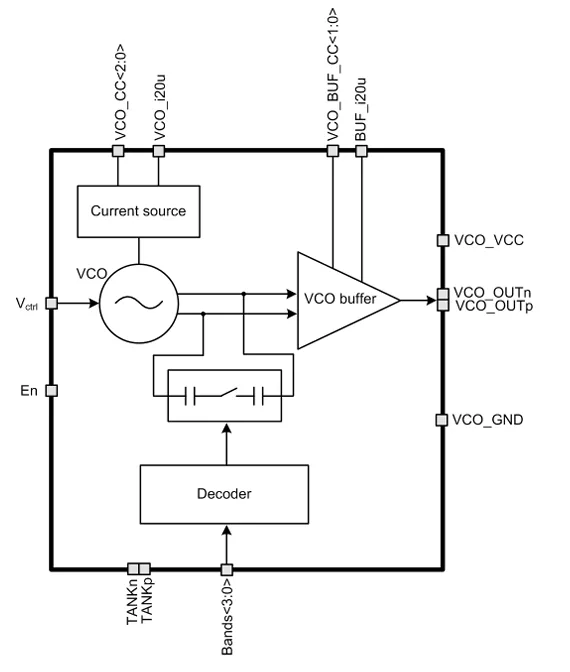

180TSMC_VCO_10 block diagram

Applications

Phase-locked loop synthesizer

What’s Included?

Schematic or NetList
Abstract model (.lef and .lib files)
Layout view (optional)
Behavioral model (Verilog)
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation

Silicon Options

Foundry	Node	Process	Maturity
TSMC	180nm	BCDG2	Silicon Proven
