What is 2693 to 3753 MHz Voltage controlled oscillator?
2693 to 3753 MHz Voltage controlled oscillator is a Oscillator IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
Oscillator
2693 to 3753 MHz Voltage controlled oscillator
Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control vol…
Overview
Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it.
The block is fabricated on AMS BiCMOS 0.35 um techology
Key features
- AMS BiCMOS 0.35 um techology
- Low phase noise level
- Wide frequency range (2693…3753 MHz)
- Adjustable output voltage swing
- Low current consumption
- Portable to other technologies (upon request)
Block Diagram

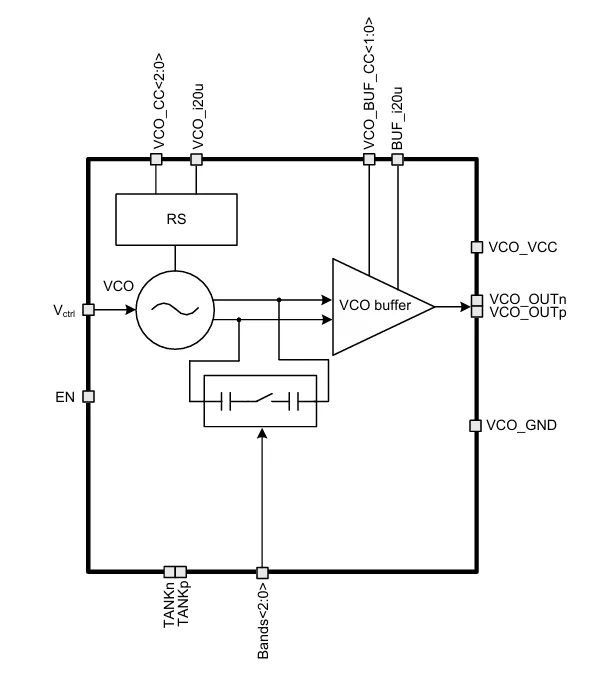

350AMS_VCO_04 block diagram
Applications
- Frequency synthesizer with PLL
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_VCO_04
Vendor
NTLab
Type
Silicon IP
