Vendor: Canova Tech Srl Category: PLL

25MHz to 200MHz Low Jitter Low Power PLL

CT20900 is a PLL providing 33, 66, 50 and 200MHz clocks based on a 25MHz reference clock.

Contact Provider Request Datasheet

Overview

CT20900 is a PLL providing 33, 66, 50 and 200MHz clocks based on a 25MHz reference clock. It comprises a Phase Frequency Detector with internal charge pump that detects the phase difference between the 25MHz reference clock and the divided by 8 version of the 200MHz clock generated by the Voltage Controlled Oscillator (VCO).

The loop includes a second order Low Pass Filter (LPF)

Key features

  • Fully Differential Topology
  • Charge Pump 3rd order configuration
  • 2nd order passive loop filter
  • Fin = 25MHz, Fout = 33, 50, 66 and 200MHz
  • Maximum Jitter < 50ps
  • Max current consumption = 2.3mA

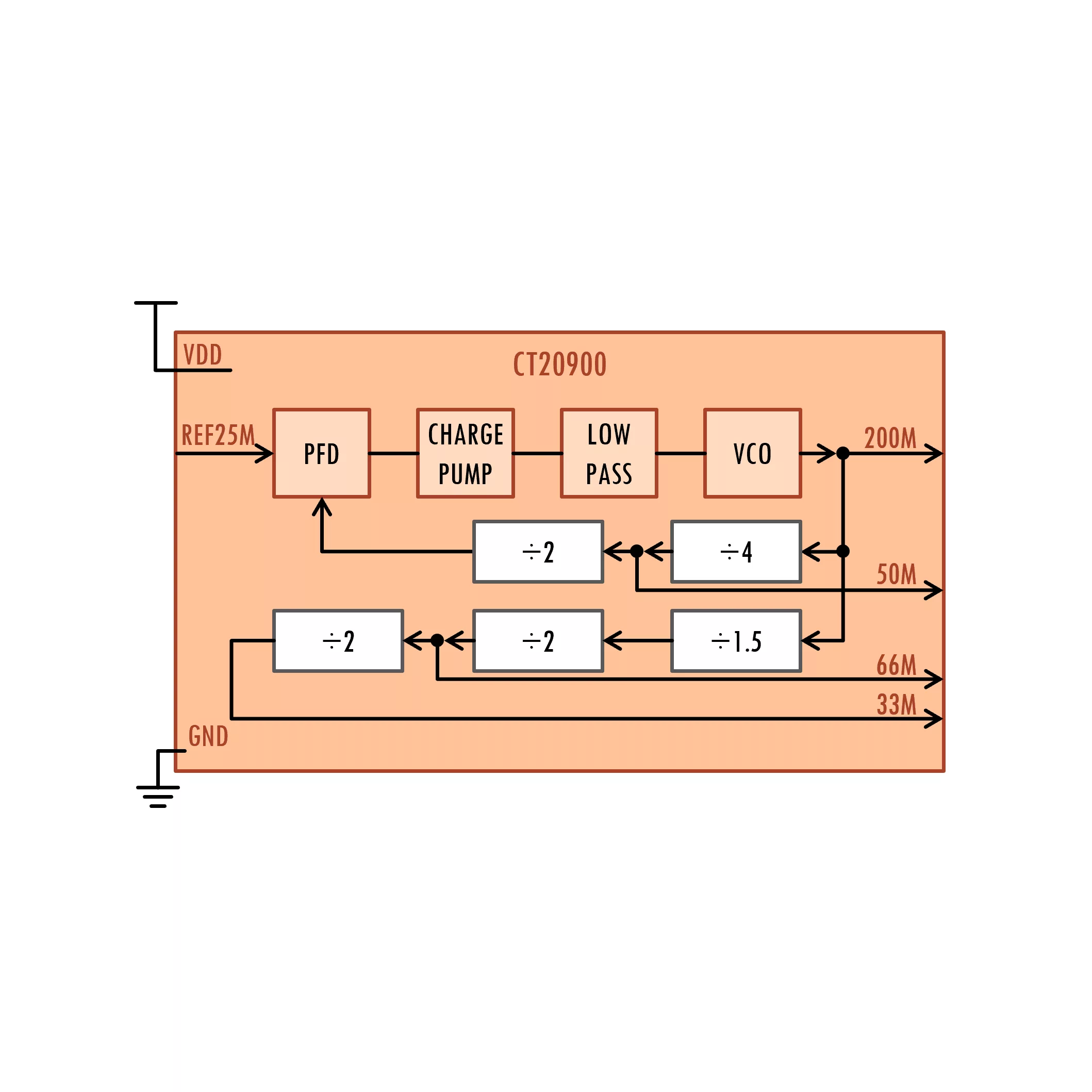

Block Diagram

CT20900 block diagram

Benefits

  • Easy portability

Applications

  • Automotive Ethernet
  • Baseband Telecom

What’s Included?

  • Datasheet
  • Integration guidelines
  • GDS2 and LVS Netlist
  • Footprint (.LEF)
  • Test Specifications

Specifications

Identity

Part Number
CT20900
Vendor
Canova Tech Srl
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Canova Tech Srl
HQ: Italy
Contact Canova Tech Srl
