What is 2096 to 2916 MHz Voltage controlled oscillator?
2096 to 2916 MHz Voltage controlled oscillator is a Oscillator IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
Oscillator
2096 to 2916 MHz Voltage controlled oscillator
Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control vol…
Overview
Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it.
The block is fabricated on AMS BiCMOS 0.35 um techology.
Key features
- AMS BiCMOS 0.35 um
- Low phase noise level
- Wide frequency range (2096…2916 MHz)
- Adjustable output voltage swing
- Low current consumption
- Portable to other technologies (upon request)
Block Diagram

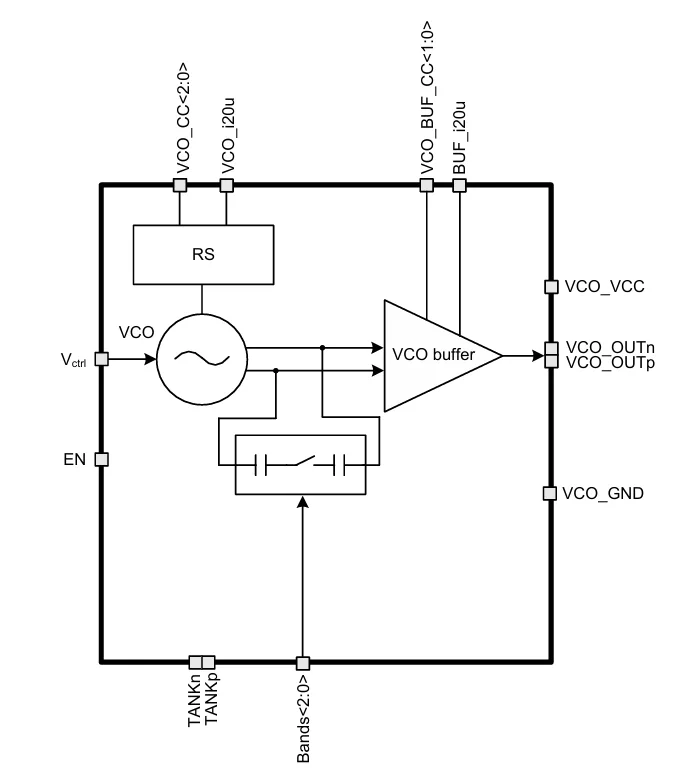

350AMS_VCO_05 block diagram
Applications
- Frequency synthesizer with PLL
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_VCO_05
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
