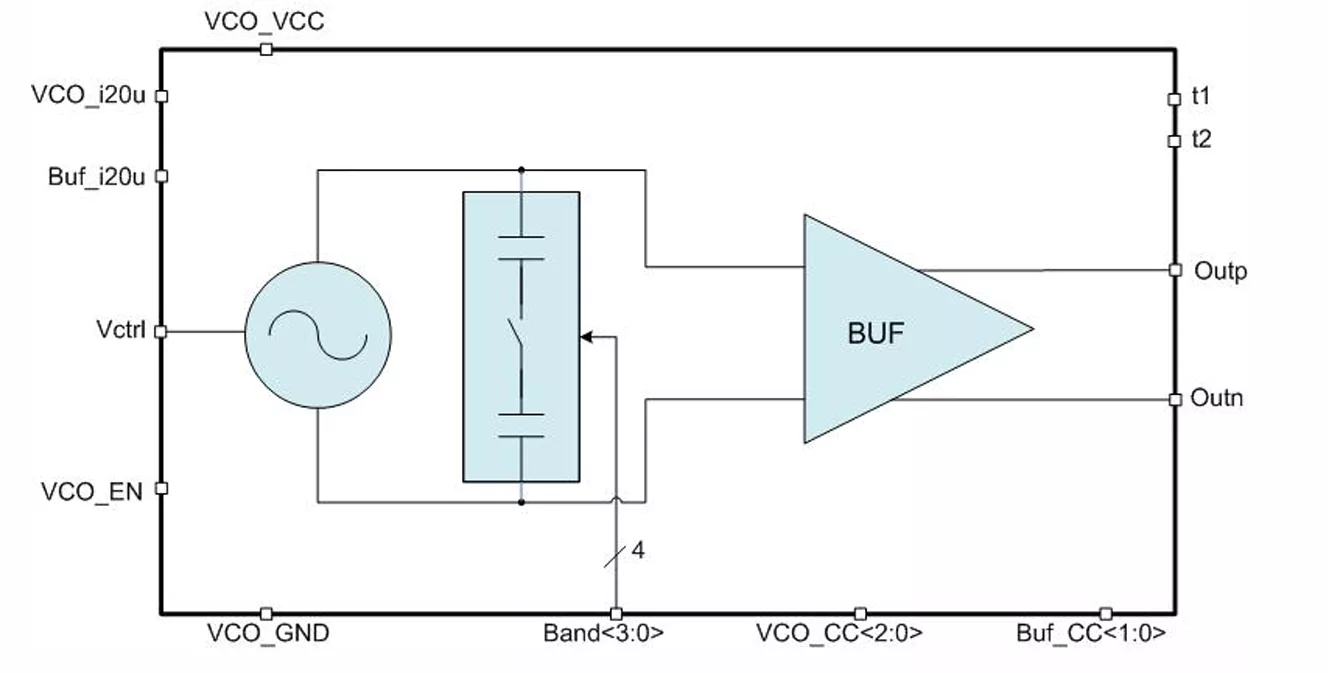

Voltage–controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it. The device uses internal oscillation circuit and operates without external components. Frequency tuning range is defined by a control voltage of a build-in switched capacitor sections, and the built-in varicap is used for a fine adjustment.
The block is fabricated on SMIC CMOS 0.18 um technology.
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 180nm | G | Silicon Proven |
Note: some files may require an NDA depending on provider policy.
2.8 to 3.3 GHz Voltage controlled oscillator is a Oscillator IP core from NTLab listed on Semi IP Hub. It is listed with support for smic Silicon Proven.
