Vendor: 1-VIA Category: PLL

14GHz Integer-N High-Speed PLL

1-VIA’s broad portfolio of general-purpose and optimized LC-PLLs offer a wide range of clocking solutions.

TSMC 55nm GP View all specifications

Overview

1-VIA’s broad portfolio of general-purpose and optimized LC-PLLs offer a wide range of clocking solutions.

The Integer-N high-speed PLL creates quadrature clocks with good duty cycle and excellent jitter characteristics for high-speed, source-synchronous interfaces and other high-speed logic applications.

The PLL is implemented using 1-VIA’s proprietary architecture, utilizing an integrated Low-Dropout (LDO) regulator and bandgap reference generator. This architecture helps achieve exceptional jitter performance whilst also reducing power consumption.

Key features

  • Type II hybrid Integer-N LC-PLL
  • Quadrature clocks at 14GHz and 7GHz
  • Fast locking
  • Low-power and ultra-low-jitter (<50fs-rms)
  • Analog and digital lock-detector for calibration and DSP purposes
  • Auto-calibration at start-up and “in background” for PVT drift

Block Diagram

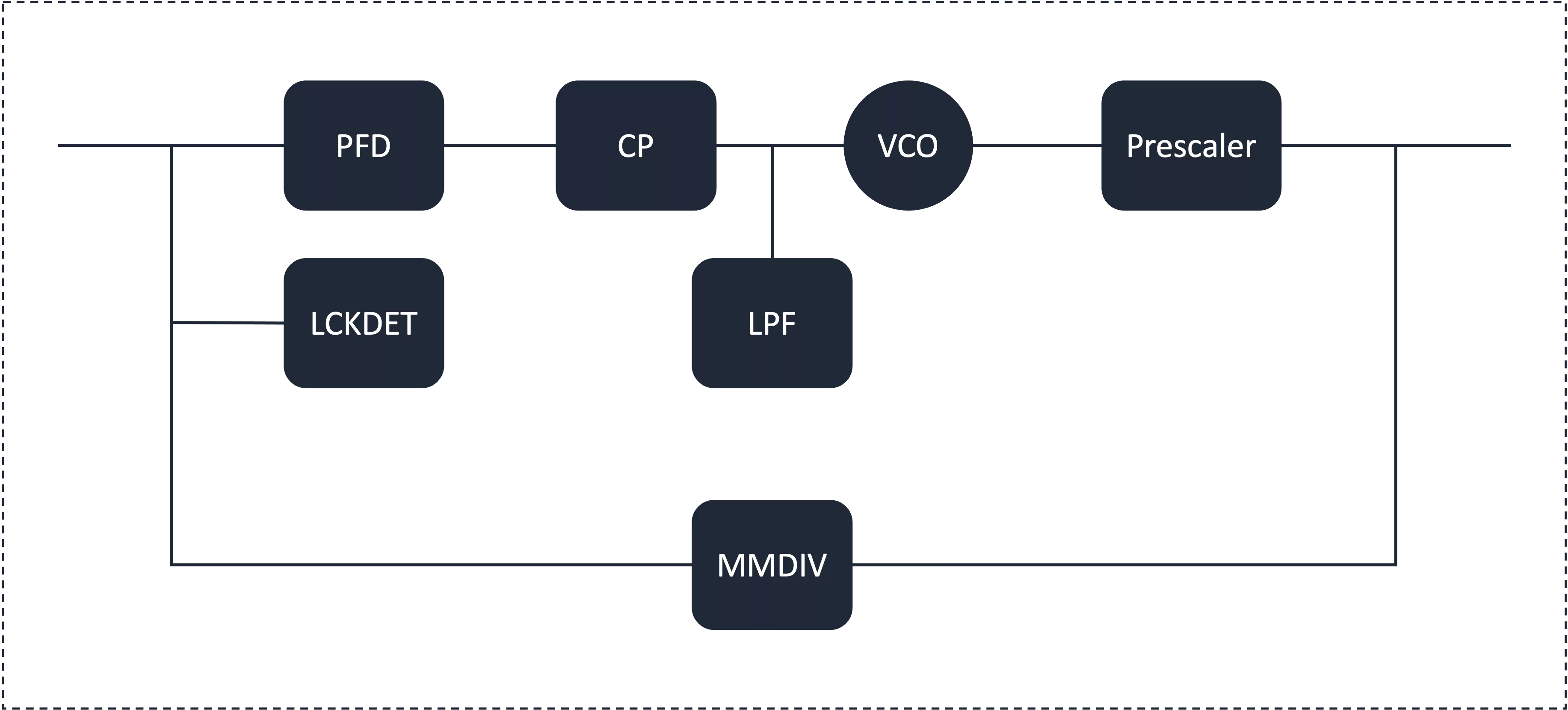

14GHz Integer-N High-Speed PLL block diagram

Benefits

  • Wide functional range allows all frequencies in a system to be synthesized with one PLL macro
  • Low area on chip -- keepouts = DRC limit in most cases
  • No external components required
  • No additional supply decoupling required
  • Self biased and automatically adjusts for any input frequency, so no complicated programming is required

Applications

  • Artificial Intelligence (AI)
  • Internet of Things (IoT)
  • Medical
  • Analogue-to-Digital Converter (ADC)
  • RF ASICs
  • Automotive
  • Wireless
  • Digital-to-Analog Converter (DAC)
  • Mixed-signal ASICs
  • SoCs
  • SerDes

What’s Included?

  • Datasheet
  • Characterization report
  • Layout view (GDSII)
  • Abstract view (LEF)
  • Behavioural model (VerilogA)
  • Integration guidelines and support

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP —

Specifications

Identity

Part Number
14GHz Integer-N High-Speed PLL
Vendor
1-VIA
Type
Silicon IP

Files

Product Sheet Download
