12bit 2MSps A/D Converter on TSMC CLN28HPC+

This IP is Successive Approximation Register (SAR) Analog to Digital Converter on TSMC CLN28HPC+

12 Bit SAR TSMC 28nm HPC+ Available on request View all specifications

Overview

This IP is Successive Approximation Register (SAR) Analog to Digital Converter.

Key features

  • Conversion method : Successive approximation
  • Resolution : 12bit
  • Conversion time : 0.5µs
  • Differential nonlinearity : -1LSB(Min.)/+2LSB(Max.)
  • Integral nonlinearity : -4LSB(Min.)/+4LSB(Max.)
  • Supply voltage: VCCA=1.8+/-0.15V
  • Analog Input range : 0 to VCCA, single-ended.
  • 14ch analog inputs multiplexer included.

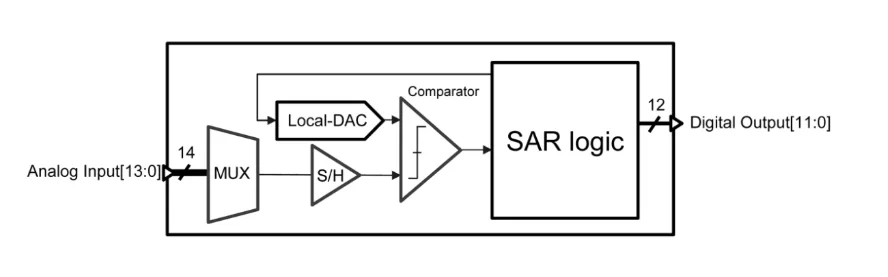

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ Available on request

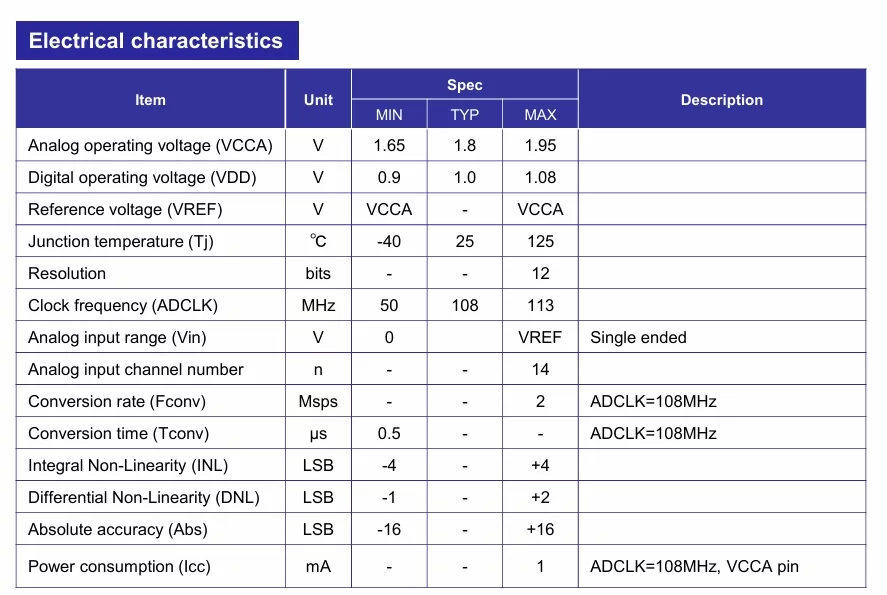

Specifications

Identity

Part Number
12-bit SAR ADC (1.8V, 0.5µs) - TSMC CLN28HPC+
Vendor
Renesas
Type
Silicon IP

Analog

Resolution bits
12 Bit
ADC Type
SAR

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
