What is 1270 to 1650 MHz Voltage controlled oscillator?
1270 to 1650 MHz Voltage controlled oscillator is a Oscillator IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
Oscillator
1270 to 1650 MHz Voltage controlled oscillator
Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control vol…
Overview
Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it (Vctrl).
Frequency tuning range (1270…1650 MHz) is defined by a control voltage of a build-in switched capacitor sections, and the built-in varicap is used for a fine adjustment.
The block is fabricated on AMSBiCMOS 0.35 um technology.
Key features
- AMS BiCMOS 0.35 um
- Low phase noise
- Wide frequency range
- Adjustable output amplitude
- Low current consumption
Block Diagram

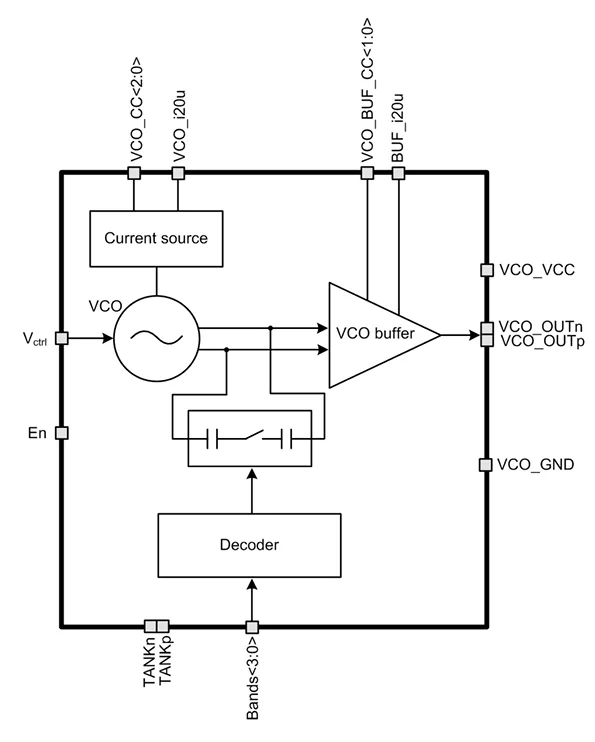

350AMS_VCO_01 block diagram
Applications
- Phase-locked loop synthesizer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_VCO_01
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
