What is 10 GHz to 14 GHz Low phase Noise Fractional-N Synthesizer?
10 GHz to 14 GHz Low phase Noise Fractional-N Synthesizer is a PLL IP core from Weasic Microelectronics listed on Semi IP Hub.
Vendor:
Weasic Microelectronics
Category:
PLL
10 GHz to 14 GHz Low phase Noise Fractional-N Synthesizer
The WEA1014S45G is a wide band fractional –N frequency synthesizer with the integrated VCOs.
Overview
The WEA1014S45G is a wide band fractional –N frequency synthesizer with the integrated VCOs. It uses a reference input ranging from 25 MHz to 300 MHz, with the use of a XTAL buffer / XTAL Oscillator. The WEA1014S45G generates RF signals spanning from 10 GHz up to 14 GHz. The WEA1014S45G has the ability to automatically lock into the desired frequency with the aid of an autocalibration algorithm. The WEA1014S45G is implemented in the GlobalFoundries 45RFSOI process and is powered by 1.8 V supply.
Key features
- Low Phase Noise, Low Spur PLL
- Differential reference input: 25 MHz – 300 MHz
- RF Output frequency range: 10 GHz to 14 GHz
- Spurs @ ?f < 150MHz : < -70 dBc
- @ ?f > 150MHz : < -80 dBc
- Banerjee Figure of Merit: -218 dB
- Lock time: < 20 us
- Low Noise Phase Detector with lock detect indication
- Programmable order MASH, 24 Bit MASH
- Programmable bandwidth Loop Filter
- Multi modulus Prescaler
- Bank of LC-VCOs with more than 100 Bands/VCO
- Automatic Band Selection System
- RF, Analog and Digital power supplies: 1.8 V
- Area:2200 um x 850 um
- GF 45RFSOI Option 16 & Option 18

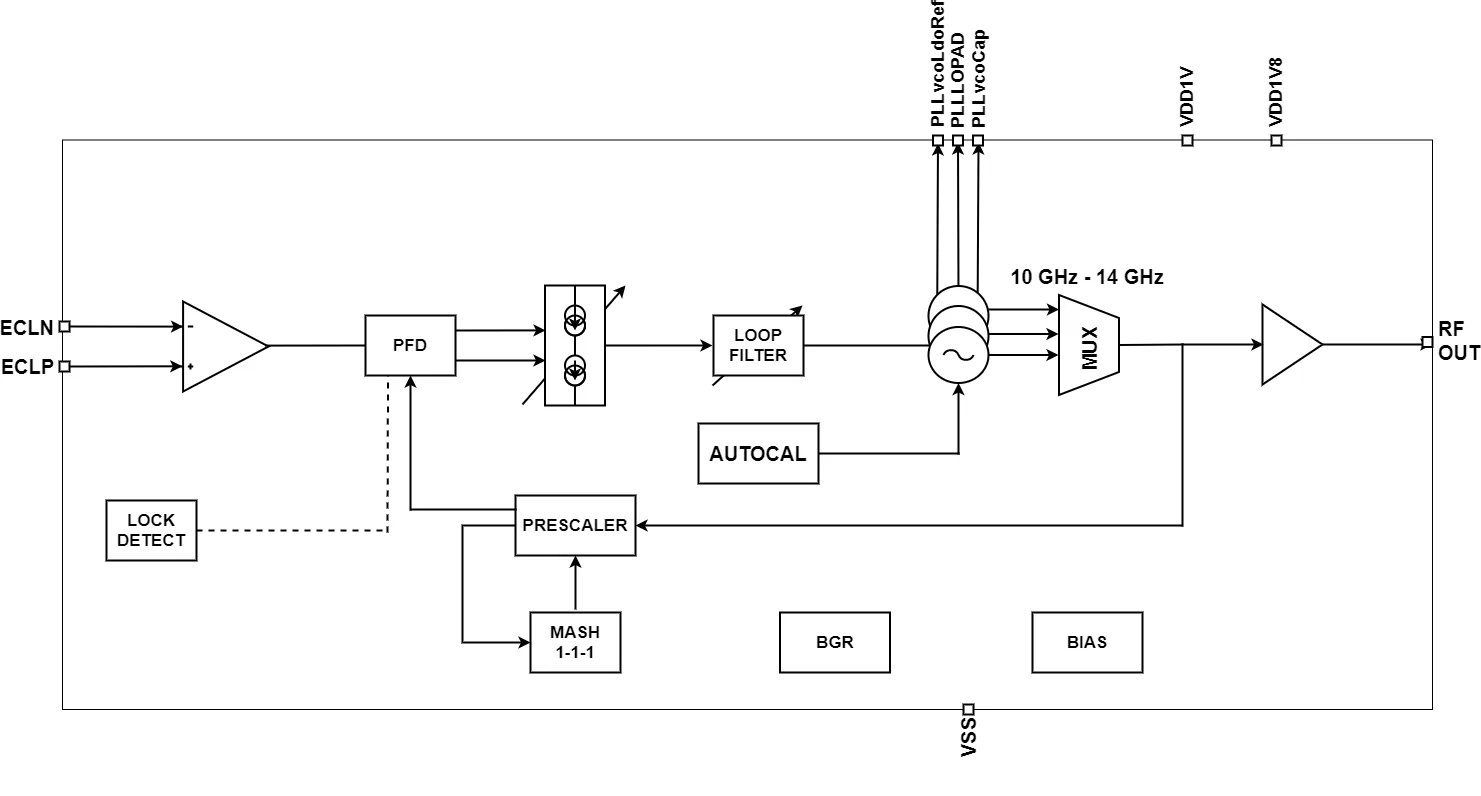

Block Diagram
WEA1014S45G block diagram
Applications
- Communications
Specifications
Identity
Part Number
WEA1014S45G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Greece
