Vendor: Certus Semiconductor Category: GPIO

1.8V/3.3V I/O library with ODIO and 5V HPD in TSMC 16nm

A 1.8V/3.3V flip-chip I/O library with 4kV HBM ESD protection, I2C compliant ODIO and Hot-Plug Detect.

TSMC 16nm View all specifications

Overview

A 1.8V/3.3V flip-chip I/O library with 4kV HBM ESD protection, I2C compliant ODIO and Hot-Plug Detect.

This library is a production-quality, silicon-proven I/O library in TSMC 16nm technology. Supports multi-voltage GPIOs, capable of operating at 1.8V or 3.3V, dynamically selectable at the system level. Also included are various open-drain I/Os and hot plug detects capable of up to 5V operation. The library also includes a wide-variety of low-capacitance RF and analog ESD. There have operating ranges from 0 to 5V protection and support a wide range of high-performance interfaces including HDMI, LVDS, USB and wireless front-ends. Also included is a range of IEC 61000-4-2 system-level ESD protection that supports digital and analog I/O cells.

Operating Conditions

Parameter Value
VDDIO 1.8V or 3.3V Dynamic
Core VDD 0.8V
Tj -40C to 125C

Cell Size and Metal Stack

Cell Size Metal Stack
GPIO 31.5x60um 1P10M
ODIO 25.2x60um 1P10M
HPD 64x125um 1P10M

Library Cell Summary

Cell Type Feature
1.8V GPIO 425 MHz @ 5pF
3.3V GPIO 275 MHz @ 5pF
ODIO I2C Compliant
HPD 500kHz for HDMI

Standards

  •  Supports a number of standards (eMMC, SPI, DDC,  SMBus, etc.)

Key features

  • GPIO Features
    •  1.8V or 3.3V - system selectable and dynamically changeable
    •  4kV HBM protection, +500V CDM protection
    •  60k Pull-up/Pull-down termination resistor
    •  Output enable/disable selectable pull-up and pull-down resistors
  • ODIO Features
    •  3.3V to 5V
    •  I2C Compliant
    •  5V ODIO designed specifically for DDC interface in HDMI
    •  standards

Block Diagram

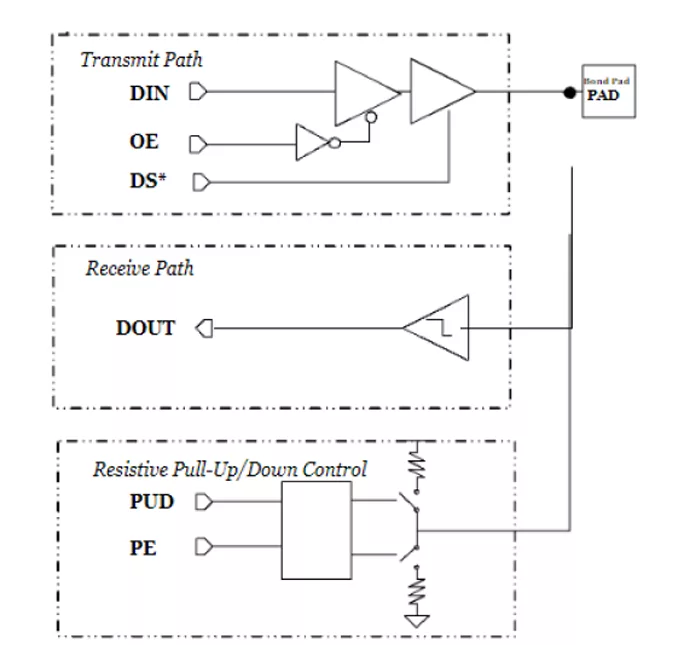

AD16 block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 16nm 16nm 160 nm —

Specifications

Identity

Part Number
AD16
Vendor
Certus Semiconductor
Type
Silicon IP

Files

Product Sheet Download
