Overview
High-Voltage Single-Ended / Differential I/O Macro in TSMC 16FFC
This library is a high-voltage GPIO I/O Macro in TSMC 16nm. The high-voltage GPIO is a flip-chip compatible 1.8V to 3.3V GPIO design, compliant with multiple I/O standards. It comes as a macro cell with a pair of I/Os in each cell, allowing differential I/O interface capabilities as well.
Operating Conditions
| Parameter | Value |
| Devices | 1.8V Thick and 0.8V Thin Oxides |
| BEOL | 11 Metals |
| VDDIO | 1.8V, 2.5V, or 3.3V Dynamic |
| VDD | 0.8V |
| Tj | -40C to 125C |
| ESD | +/- 2kV HBM, +/- 500V CDM |
Cell Names
| Cell Size | Metal Stack |
| RS_HVIO_DIF_NS | Pair of Digital GPIO, 70x75um |
| RS_HVIO_DIF_EW | Pair of Digital GPIO, 70x75um |
Single-Ended Standards
- LVCMOS: 8mA
- LVCMOS: 16mA
- SSTL Class 1
- SSTL Class 2
- PCI66
- PCIX133
Differential Standards
- LVDS
Key features
- Selectable I/O Standard Modes
- Selectable Single-Ended or Differential Operation
- Output enable/disable
- Selectable Pull-up and Pull-down resistors
- Selectable Slew Rates
Block Diagram

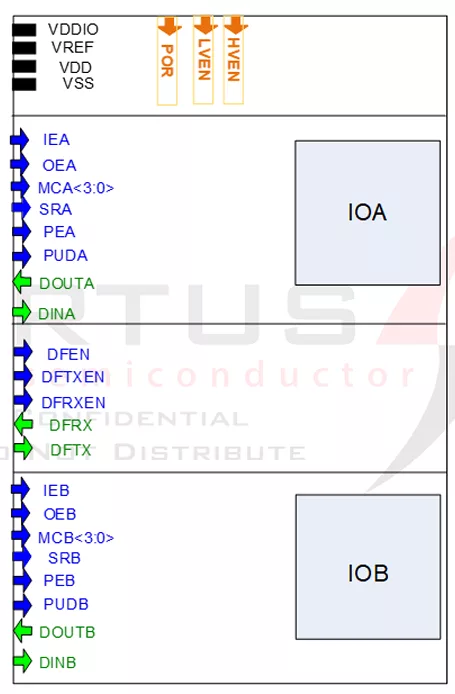

RS16_2 block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 16nm | 16nm 160 nm | — |
Specifications
Identity
Part Number
RS16_2
Vendor
Certus Semiconductor
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
United States
Learn more about GPIO IP core
