Vendor: NTLab Category: Voltage Reference

1.18 V/ 1.02...5.1 uA Reference current and voltage source

Reference current and voltage source is used to supply any analog blocks.

Contact Provider Request Datasheet

Overview

Reference current and voltage source is used to supply any analog blocks. It is based on the reference voltage source forming temperature compensation voltage and two voltage-to-current converters. The first converter uses an external resistor and output current is characterized by
weak dependence on temperature. The second converter uses an internal resistor and output current is characterized by temperature and process parameters which are matched to the internal resistor. The battery low power indicator consists of a comparator which is based on two-stage operational amplifiers.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.

Key features

  • iHP SGB25V
  • Output current termocompensation in wide temperature range
  • Built-in battery low power indicator
  • Low power consumption in power-saving mode (optional)
  • Small area
  • Portable to other technologies (upon request)

Block Diagram

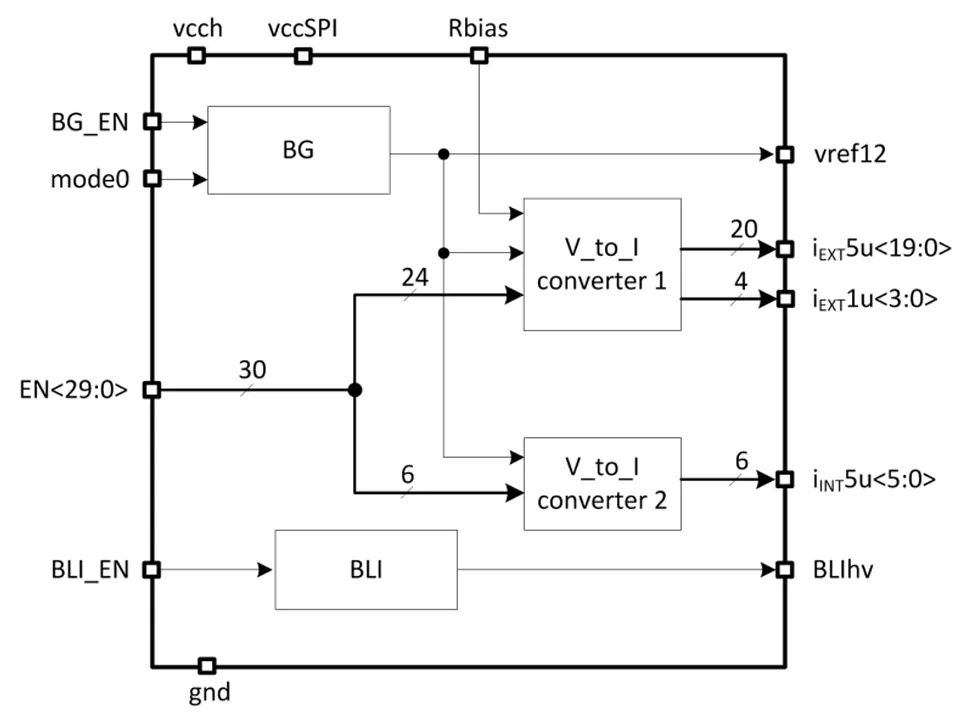

250iHP_RS_02 block diagram

Applications

  • Supply voltage stabilization systems
  • Comparison and detection systems
  • System-on-chip for different purposes

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Specifications

Identity

Part Number
250iHP_RS_02
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab

Learn more about Voltage Reference IP core
