0.9V/1.2V I/O Library in TSMC 55nm
A 0.9V/1.2V I/O Library in TSMC 55LP.
Overview
A 0.9V/1.2V I/O Library in TSMC 55LP.
This SoundWire Digital I/O Library in TSMC 55nm LP offers an advanced, low-power interface solution for high-performance audio applications. Supporting 0.9V/1.2V operation, this library provides Data, Clock, and Select I/Os, enabling seamless integration with SoundWire-based systems while delivering enhanced power efficiency. This next-generation library intro duces auto delay calibration, improving timing precision and signal integrity beyond previous versions. Built for reliability, the I/O cells meet 2kV HBM, 500V CDM, and 8kV system-level ESD protection (150pF, 330 direct contact to housing), with 18kV air discharge capability, ensuring robust protection against electrostatic and environmental stress. Ideal for low-power, high-fidelity audio designs, this I/O library provides superior performance with enhanced calibration and compliance with industry standards.
Operating Conditions
| Feature | Value |
| Core Device | 0.9V Standard |
| I/O Device | 1.2V Standard |
| BEOL | 1P9M |
| Cell Height | 130um |
| Tj | -40C to 125C |
| ESD | 2kV HBM, 500V CDM, 8kV IEC |
| Latch-up | 100mA @ +85C |
Cell Names
| Cell Name | Cell Type |
| TF_DATA | Digital Output |
| TF_CLK | Digital Input |
| TF_SELECT | Digital InOut |
| TF_DELAY | Auxiliary |
| TF_ANA | Analog I/O |
| TF_AVDD | Analog Power |
| TF_AVSS | Analog Ground |
| TF_DVDD | VDDIO Power |
| TF_DVSS | VDDIO Ground |
Key features
- DATA I/O Features
- Power down mode
- Output enable/disable
- Fail-Safe Operation
- Programmable Drive Strengths
- Output impedance control
- CLOCK I/O Features
- Dual voltage-level output
- Pull-down resistor
- Line-control pull-up resistor
- Internal 3M ohm pull-down resistor
- Fail-safe input
- SELECT I/O Features
- 6.5V tolerant OTP input
- Schmitt Trigger Input
- 10Mhz digital output mode
- 1.8M ohm input pulldown
- Selected hysteresis levels
- Analog test point

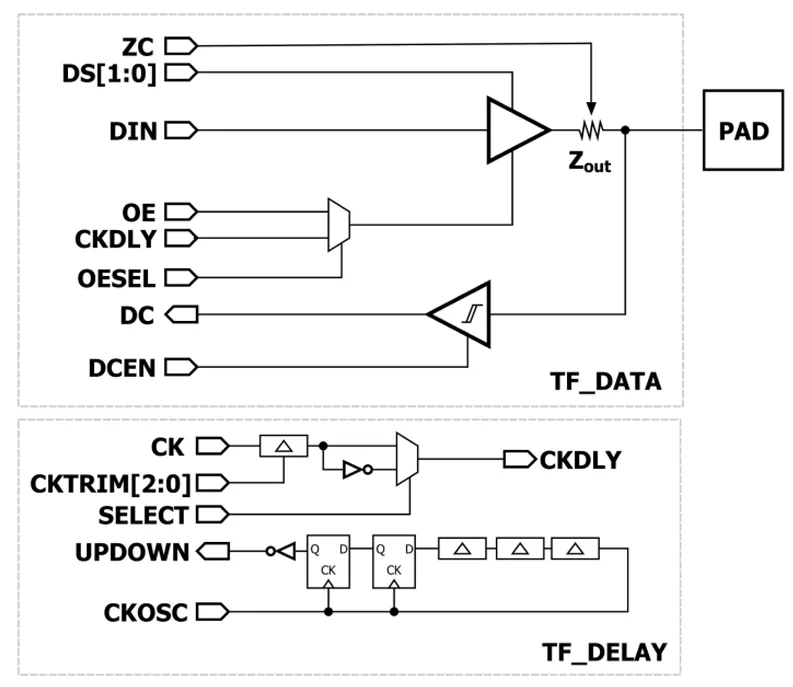

Block Diagram
TF55 block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 55nm | GP | — |
Specifications
Identity
Part Number
TF55
Vendor
Certus Semiconductor
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
United States
