Vendor: Rambus, Inc. Category: Hash / MAC

SHA-3, SHA-2, SHA-1, SM3, MD5, Hash Accelerators

The HASH-IP-57 (EIP-57) is IP for accelerating the various secure hash integrity algorithms like MD5 (RFC1231), SHA-1 (FIPS-180-2…

Contact Provider Request Datasheet

Overview

The HASH-IP-57 (EIP-57) is IP for accelerating the various secure hash integrity algorithms like MD5 (RFC1231), SHA-1 (FIPS-180-2), SHA-2 (FIPS-180-3/4) and SHA-3 (FIPS-202), supporting the NIST MAC mode up to 6.4 Gbps @ 450MHz. Designed for fast integration, low gate count and full transforms, the HASH-IP-57 accelerators provides a reliable and cost-effective embedded IP solution that is easy to integrate into high-speed crypto pipelines.

How the HASH-IP-57 works

The HASH-IP-57 is a family of the cryptographic library elements in the Rambus hardware IP library (formerly of Inside Secure). For example, the HASH-IP-57 is the hash core embedded in the IPsec packet engines as well as VaultIP hardware root of trust cores providing support for MD5 and SHA Hash-based functions. The accelerators include I/O registers, encryption and decryption cores, and the logic for feedback modes and key scheduling.

Sustained performance for any object sizes ranges from 2 to 84 Gbps depending on the configuration and area. Gate counts ranges from 14K to 49K gates depending on the configuration.

Key features

  • Wide bus interface (1024-bit data, 512-bit digest) or 32 bit register interface
  • MD5, SHA-1, SHA-2, SHA-3
  • SHA-2/3 in 224/256/384/512 modes
  • Message puffing for all algorithms
  • Message data scheduling hardware
  • Hash context switching and state loading
  • Standard, high frequency and high performance versions available
  • Fully synchronous design

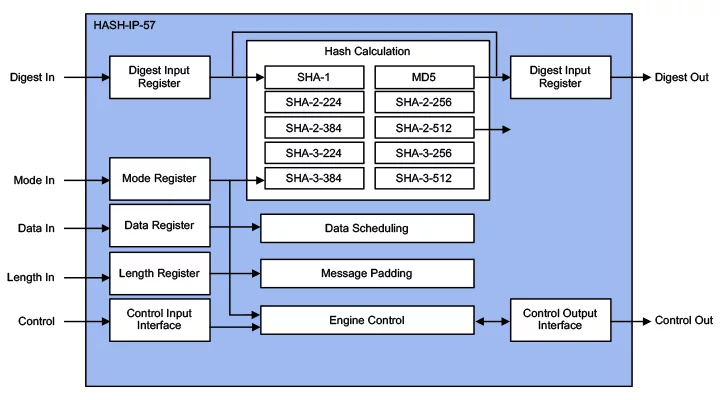

Block Diagram

HASH-IP-57 block diagram

Benefits

  • Silicon-proven implementation
  • Fast and easy to integrate into SoCs
  • Flexible layered design
  • Complete range of configurations
  • World-class technical support

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
HASH-IP-57
Vendor
Rambus, Inc.

Provider

Rambus, Inc.
HQ: USA
