Vendor: Renesas Category: Multi-Protocol PHY

MIPI D-PHY and FPD-Link (LVDS) Combinational Transmitter for TSMC 22nm ULP

The Renesas MIPI D-PHY and FPD-Link (LVDS) combinational Transmitter is useful 4 Data Channel driver hard macro for DSI of TSMC 2…

Contact Provider Request Datasheet
TSMC 22nm ULP View all specifications

Overview

The Renesas MIPI D-PHY and FPD-Link (LVDS) combinational Transmitter is useful 4 Data Channel driver hard macro for DSI of TSMC 22nm ULP process.

Key features

  • Renesas MIPI D-PHY Transmitter can be used for analog Driverof following interface .
    • MIPI alliance Specification for D-PHY Version 2.1 15 December 2016.
    • MIPI alliance Specification for Display Serial Interface (DSI).
  • Renesas LVDS Transmittercan be used for analog Driver of following interface.
    • FPD-Link(LVDS) Specification for Version D-PHY ANSI/TIA/EIA-644-A FEBRUARY 2001.
  • Technology is TSMC 22nm ULP 1p10M.
  • Supply voltage can be applied 1.0V for core voltage, 1.8V  for IO voltage.
  • Maximum data rate of each channel is 1.5Gbps at High-speed mode for MIPI D-PHY Transmitter.
  • Data rate of each channel is 609Mbps for FPD-Link(LVDS).

Block Diagram

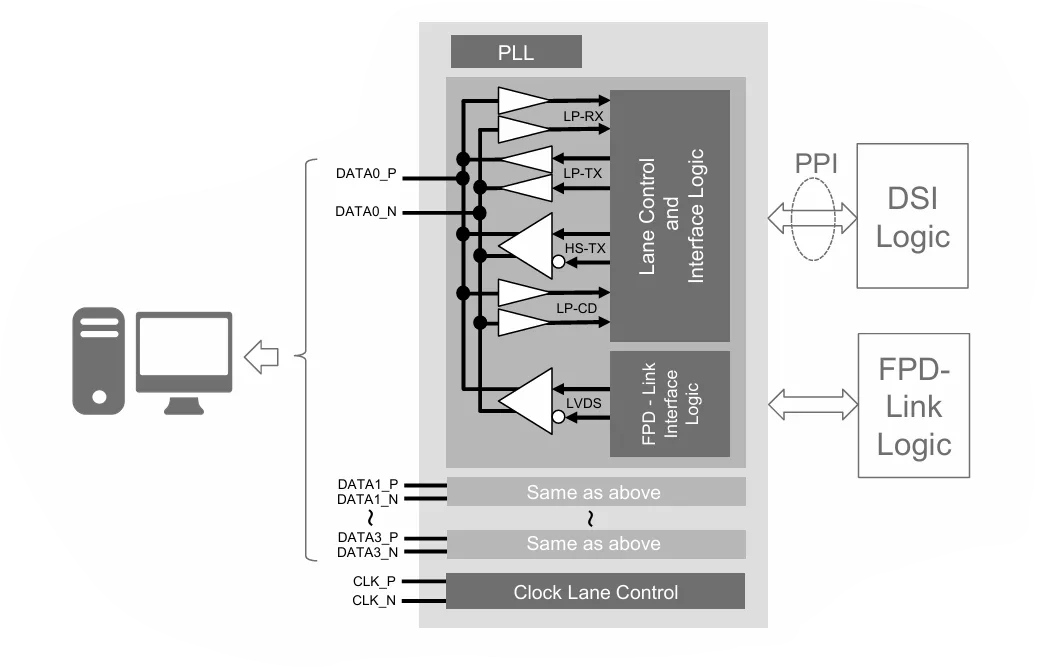

MIPI D-PHY: Transmitter for DSI with FPD-Link TX block diagram
