ITU-R BT.1120 Decoder – HD 1920x1080p

The DB1845 ITU-R BT.1120 / BT.656 Decoder IP Core decodes ITU-R BT.1120 and BT.656 digital video uncompressed NTSC and PAL video, extracting Y’CbCr 4:2:2 video components and frame timing & status signals. Note that the DB1845 can extract HD 1920x1080 down to SD 720x576/486 images -- and non standard resolutions in between -- based on programmable settings.

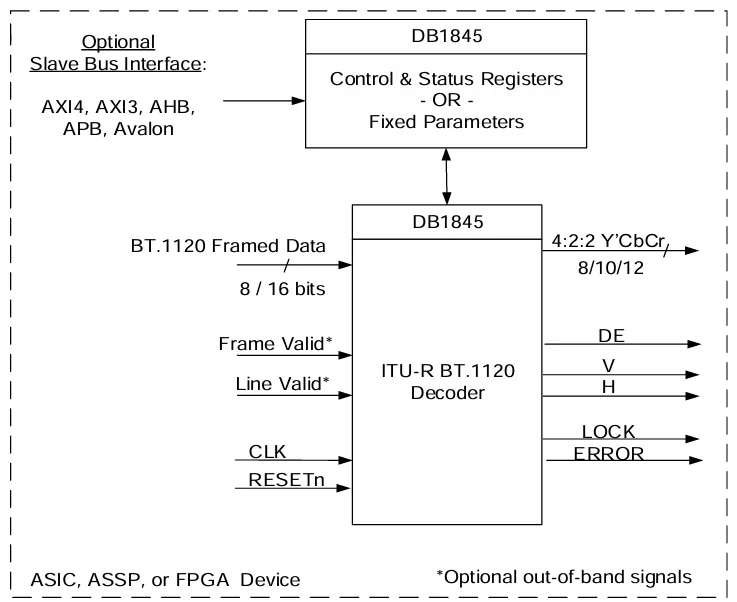

Figure 1 depicts the DB1845 ITU-R BT.1120 / BT.656 Decoder IP Core embedded within an integrated circuit device. Control & Status can be programmed into optional DB1845 registers via a bus interface, or set as non-register fixed parameters at synthesis.

Optional Frame and Line Valid input signals enable non-standard image capture and decoder output.

• Decodes an ITU-R BT.1120 Frame providing the following outputs:
  • Y’CbCr 4:2:2 color digital components (Luma/Chroma)
  • Data Enable for Luma / Chroma component samples
  • V, H timing synchronization
  • Status - Lock & Error detection
• Programmable 8/10-bit Y’CbCr Symbol extraction
• Supports following High/Standard Definitions:
  • High Definition (HD) – ITU-R BT.1120:  NTSC 2200x1100 (1080p/60 Hz) PAL 2640x1320 (1080p/50 Hz) 74.25 / 158.5 MHz
  • Standard Definition (SD) – ITU-R BT.656:  NTSC 720x486 (525/60 Video System) PAL 720x576 (625/50 Video System) 27 MHz Sampling Rate
  • Above representative of HD/SD Standards as programming settings and/or incoming Frame determine extracted Y’CbCr Symbols and video timing
• Decodes Interlace & Progressive Images – outputting Progressive Image
• Optional Additional Features:
  • DMA Controller to send decoded Y’CbCr data to memory
  • Color Space Converter – typically to convert to RGB 4:2:2
  • Color Space Converter and Chroma upsampler – to convert to RGB 4:4:4
• User optional Slave Bus Interface for programming Control & Status Registers
• On-Chip Interconnect Compliance (optional) – Avalon/Qsys, AXI, AXI4, AHB:
  • AMBA AXI4 Protocol Specification (V3.0)
  • AMBA AXI3 Protocol Specification (V1.0)
  • AMBA AHB Specification 2.0
  • AMBA APB Specification 2.0
  • Avalon Interface Specification (MNL-AVABUSREF-2.0)
• FPGA Integration Support:
  • Altera Quartus II & Qsys Integration & NIOS II EDS Reference Design
  • Xilinx ISE Design Suite utilizing AMBA AXI4 & Embedded Development & Software Development Kits
• ASIC / ASSP Design-In Support:
  • Compliance to RTL Design & Coding Standards
  • Digital Blocks Support Services
• Fully-synchronous, synthesizable Verilog RTL IP Core, with rising-edge clocking, No gated clocks, and No internal tri-states
