Vendor: Secure-IC Category: Symmetric Crypto

ChaCha20-Poly1305 Crypto Engine

The ChaCha20-Poly1305 Crypto Engine is RFC7539 compliant to provide Authenticated Encryption with Associated Data (AEAD) using th…

Contact Provider Request Datasheet

Overview

The ChaCha20-Poly1305 Crypto Engine is RFC7539 compliant to provide Authenticated Encryption with Associated Data (AEAD) using the ChaCha20 stream cipher combined with the Poly1305 message-authentication code.

Implementation aspects

The ChaCha20-Poly1305 Crypto Engine is available for ASIC and FPGA, with simple interfaces and easy to integrate. It supports a wide range of applications on various technologies. The IP Core can be combined with scatter/gather DMA and AMBA interfaces (AHB/AXI) enabling multi-Gbps throughput in SoC solutions.

This IP Core is also available in the integrated secure element/eSecure IP solution from Secure-IC.

Key features

  • ASIC and FPGA
  • Fully compliant with RFC7539
  • Supports authentication and encryption mode (AEAD)
  • Supports stand-alone encryption/decryption (ChaCha20)
  • Supports stand-alone authentication (Poly1305)
  • Context switching
  • AMBA AHB/AXI bridges (with optional scatter/gather DMA)
  • Low power features
  • Key generation for Poly1305
    • ChaCha20
    • Dedicated input
  • Full synchronous design

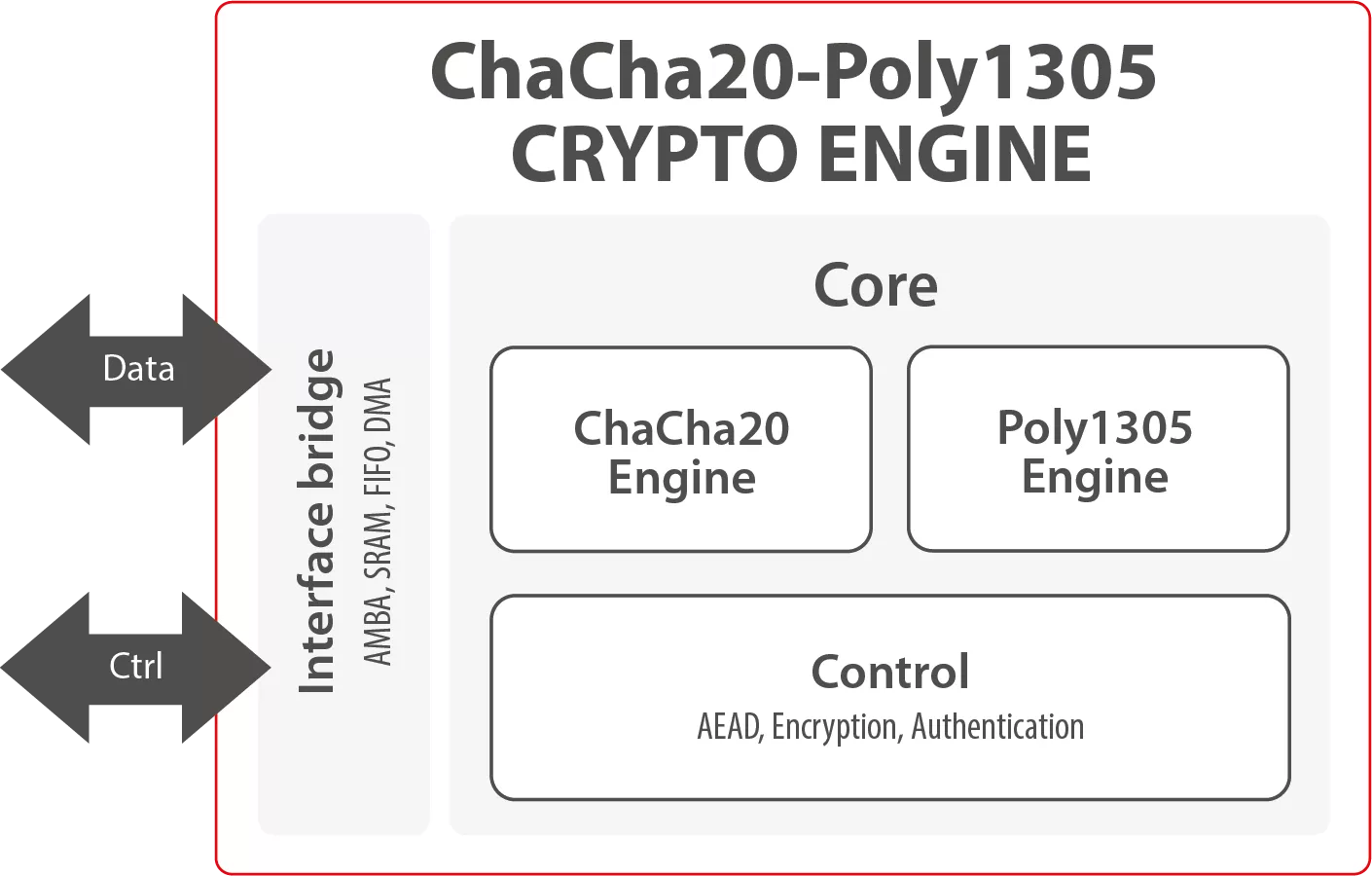

Block Diagram

SCZ_IP_ChaChaPoly block diagram

Applications

  • TLS/DTLS
  • OpenSSH
  • IPsec

What’s Included?

  • Netlist or RTL
  • Scripts for synthesis
  • Self-checking TestBench based on FIPS vectors
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
SCZ_IP_ChaChaPoly
Vendor
Secure-IC

Provider

Secure-IC
HQ: France
With presence and customers across 5 continents, Secure-IC is the rising leader and the only global provider of end-to-end cybersecurity solutions for embedded systems and connected objects. Driven by a unique approach called PESC (Protect, Evaluate, Service & Certify), Secure-IC positions itself as a partner to support its clients throughout and beyond the IC design process. Relying on innovation and research activities, Secure-IC provides Silicon-proven and cutting-edge protection technologies, integrated Secure Elements and security evaluation platforms to reach compliance with the highest level of certification for different markets (such as automotive, AIoT, defense, payments & transactions, memory & storage, server & cloud). Discover in preview of Secure-IC new Securyzr Server to manage the security of heterogeneous fleets of IoT devices throughout their lifecycle
