AES GCM IP Core

AES GCM IP Core is a Secure Symmetric Block Cipher IP Core that has compliance with the Encryption Standard (AES) specification i…

Contact Provider Request Datasheet

Overview

AES GCM IP Core is a Secure Symmetric Block Cipher IP Core that has compliance with the Advanced Encryption Standard (AES) specification in "FIPS 197". This standard specifies the Rijndael algorithm, a symmetric block cipher that can process data blocks of 128 bits, using cipher keys with lengths of 128, 192, and 256 bits.

Countermeasures against side-channel attacks (DPA) are implemented in the AES IP Core. AES GCM IP Core is compatible with Xilinx FPGAs and INTEL FPGAs. VHDL is used as the Hardware Description Language of the IP Core. GCM mode of operations is supported and implemented according to "NIST SP800-38a" and "NIST SP800-38d".

Key features

  • supports encryption and decryption for modes listed below:
    •   GCM mode of operation
  • supports offline and online key schedule
  • supports 128, 192 and 256-bit key lengths
  • has masked and non-masked modes
  • is compliant with FIPS 197
  • is tested on Z-7015 Z-7020 Z-7045
  • has fully scalable input and output interfaces

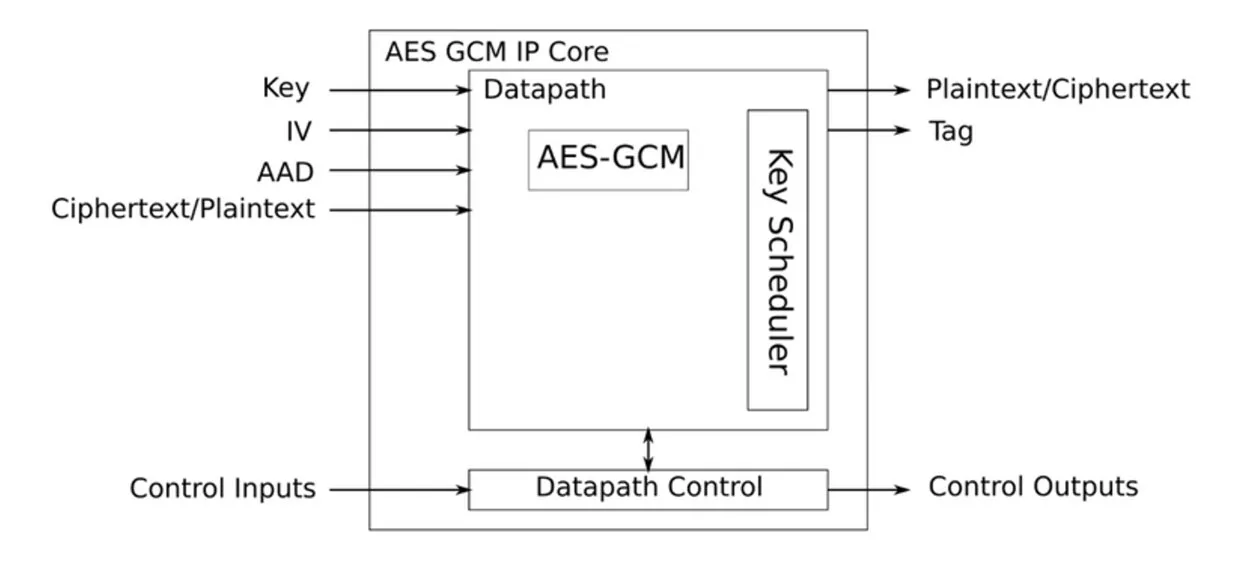

Block Diagram

AES GCM IP Core block diagram

What’s Included?

  • IP can be licensed as;
    • Single project license
    • Multi-project license
  • Delivery type of the IP can be;
    • Encrypted Netlist
    • Encrypted RTL
  • SUPPORT
    • First-year M&S is mandatory. Customers receive IP updates and phone and email support related to the IP core under the M&S agreement

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
AES GCM IP Core
Vendor
ElectraIC

Provider

ElectraIC
HQ: Turkey
ElectraIC provides electronic circuit design and verification services in the field of ASIC, FPGA and embedded systems. The team has the experience of working with global multinational companies. The company has been involved in and continues to take part in many projects, especially in Aerospace and Defense areas, as well as consumer electronics. Functional safety using DO-254, ISO 26262 and EN 50129 are speciality areas. ElectraIC delivers also trainings on ASIC, FPGA and embedded systems. Contributions ElectraIC can make to your organization:
  • Design IP Cores
  • Design & Verification Services: ASIC / FPGA and Embedded Systems’ development
  • Functional Safety Consultancy & Training Services
  • Trainings: Wide range of trainings with more than 150 different trainings
Contact ElectraIC
