ARINC 818-2 IP Core

The vendor has designed & implemented ARINC 818-2 Transmitter & Receiver IP Core supporting multiple line rates up to 8.5 Gbps.

Contact Provider Request Datasheet

Overview

The vendor has designed & implemented ARINC 818-2 Transmitter & Receiver IP Core supporting multiple line rates up to 8.5 Gbps.

ARINC 818 (ADVB) is a high data rate video bus based on the ANSI Fiber Channel Audio-Video (FC-AV) protocol standards. Emphasizing cost reduction as well as speeding up the link initialization. ARINC 818 is a unidirectional interface that was developed for avionics systems, such as connecting mission processors to cockpit displays like HUDS, MFDs, PFDs, or HMDs. Used widely in Boeing 787 and the KC46A tanker, Airbus A350 and A400M, the COMAC C-919, the C-17, F15, F18 and various military aircrafts.

Key features

  • Compliant to ARINC818-2 Specification. The max speed supported is 12.75 Gbps.
  • Built on Fiber Channel Audio Video protocol.
  • Point-to-Point Video/Data Transmission support using 8B/10B Encoding over the serial link.
  • Supports both optical and electrical links.
  • Supports line-segmentation and line-synchronous transmission.
  • Receiver error and status reporting with support for user data.
  • CEMILAC certified and DO-254 DAL-B Compliant design.

Block Diagram

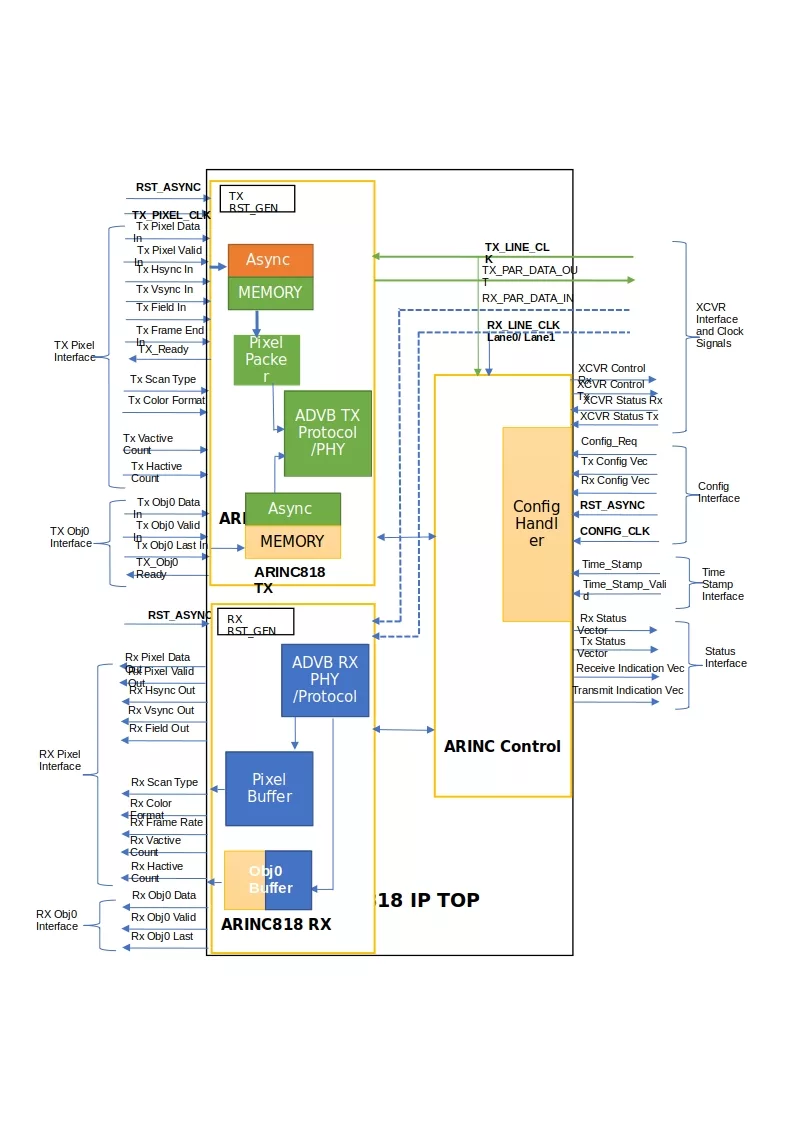

ARINC 818-2 IP Core block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
ARINC 818-2 IP Core
Vendor
Logic Fruit Technologies

Provider

Logic Fruit Technologies
HQ: India
Logic Fruit Technologies designs and deploys embedded solutions for customers around the world. The company has specific experience FPGA Design Services, Hardware Design Services, RTL Testing, variety of Digital Protocols, Communication Buses and Tools, including 1G, 10G Ethernet, PCIe, DIGRF, USB3.0, STM, HDMI, and software-defined radio (SDR), as well as Encryption, Protocol Compliance, Signal Generation, Data Analysis, IoT Technology, and Multiple Image Processing Techniques.
Contact Logic Fruit Technologies
