100G / 200G / 400G / 800G / 1.6T MACsec
Ethernet Layer 2 Security solution for High speed applications The MACsec IP provides Ethernet Layer 2 Security for port authenti…
Overview
Ethernet Layer 2 Security solution for High speed applications
The MACsec IP provides Ethernet Layer 2 Security for port authentication, data confidentiality and data integrity as standardized in IEEE 802.1AE. It protects components in Ethernet networks especially very high-speed Ethernet used in cloud, data center, and backhaul networks. The MACsec IP is a fully compliant solution that provides line-rate encryption and supports VLAN-in-Clear.
The core is configurable to have multiple Security Entities, SecYs, in a single IP to support multiple Connectivity Associations per port for traffic differentiation, and is prepared for easy interfacing with Comcores or third-party MAC, PCS and TSN Switch IPs. It implements a 128-bit MACsec data processing, where multiple 128-bit pipelines can be configured according to the target speed and input/output data interfaces. The IP can be configured for its placement above or below the MAC. It additionally includes a software tool for MACsec Key Agreement Protocol IEEE 802.1X integration.
Key features
Delivers Performance
- Compliance with IEEE Std 802.1AE-2018
- Line-rate traffic encryption and decryption
Highly Configurable
- Supports 100G / 200G / 400G / 800G / 1.6T data rates
- Multiple Connectivity Associations (SecYs) with Traffic Mapping Rules
- Multiple integration contexts for placement above or below the MAC
Feature Rich
- AES-GCM-128 and AES-GCM-256 Cipher Suites with eXtended Packet Number (XPN)
- VLAN-in-Clear
- Confidentiality Offset
- Software tool for MACsec Key Agreement Protocol IEEE 802.1X integration
Silicon Agnostic
- Designed in Verilog and targeting both ASICs and FPGAs

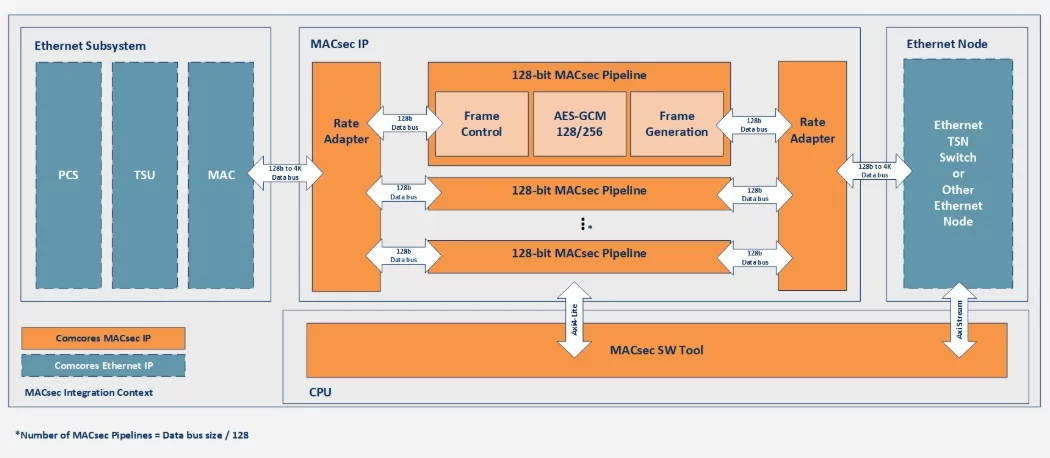

Block Diagram
100G / 200G / 400G / 800G / 1.6T MACsec block diagram
What’s Included?
The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:
- Solid documentation, including User Manual and Release Note
- Simulation Environment, including Simple Testbed, Test case and Test Script
- Programming Register Specification
- Timing Constraints in Synopsys SDC format
- Access to support system and direct support from Comcores Engineers
- Synopsys SGDC Files (optional)
- Synopsys Lint, CDC and Waivers (optional)
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
100G / 200G / 400G / 800G / 1.6T MACsec
Vendor
Comcores
Provider
Comcores
HQ:
Denmark
Comcores is a market leader in the development of state-of-the-art IP-cores for communication systems. The company is a leading provider of digital components for high-speed digital connectivity between wireless communication network components as well as radio functionality in existing and next-generation mobile infrastructure networks. Comcores offers leading IP cores solutions, expertise in research and development as well as custom design solutions.
