MacSec Verification IP
The MacSec Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of …
Overview
The MacSec Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The MacSec Ethernet VIP is fully compliant with IEEE standard 802.1AE-2018 specification. This VIP is lightweight with an easy plug -and- play interface so that there is no hit on the design cycle time.
Key features
- Provides Ethernet fully compliant to 802.3-2018 supporting all media independent interfaces for (1/10/25/40/50/100/200/400/800 G)
- Provides MacSec as per IEEE standard 802.1AE-2018 specification
- Supports controlled and uncontrolled ports
- Encodes and decodes MacSeC PDUs
- Protects and validates macSec Pdus using AES-GCM-128 Cipher suites
- Cryptographic protection
- Modification and Addition of MSDU
- Uses configurable secure association key for encryption and authentication
- Supports Vlan and jumbo frames
- Supports Replay protection and ICV Works in tandem with gPTP (IEEE 802.1AS)/ PTP (IEEE 1588)
- Supports Energy Efficient Ethernet.
- Supports clock data recovery(CDR).
- Supports Pause Frame-Based Flow Control.
- Supports test pattern generation and checking.
- Supports Management data Input/output registers.
- Supports full-duplex operation.
- Callback support in all Layers to provide user control.
- Rich set of configuration and parameters.
- Supports Dynamic as well as Static Error Injection scenarios.
- On the fly protocol checking static and dynamic assertion.
- Built-in Coverage analysis.
- Graphical analyzer to show transactions for easy debugging.

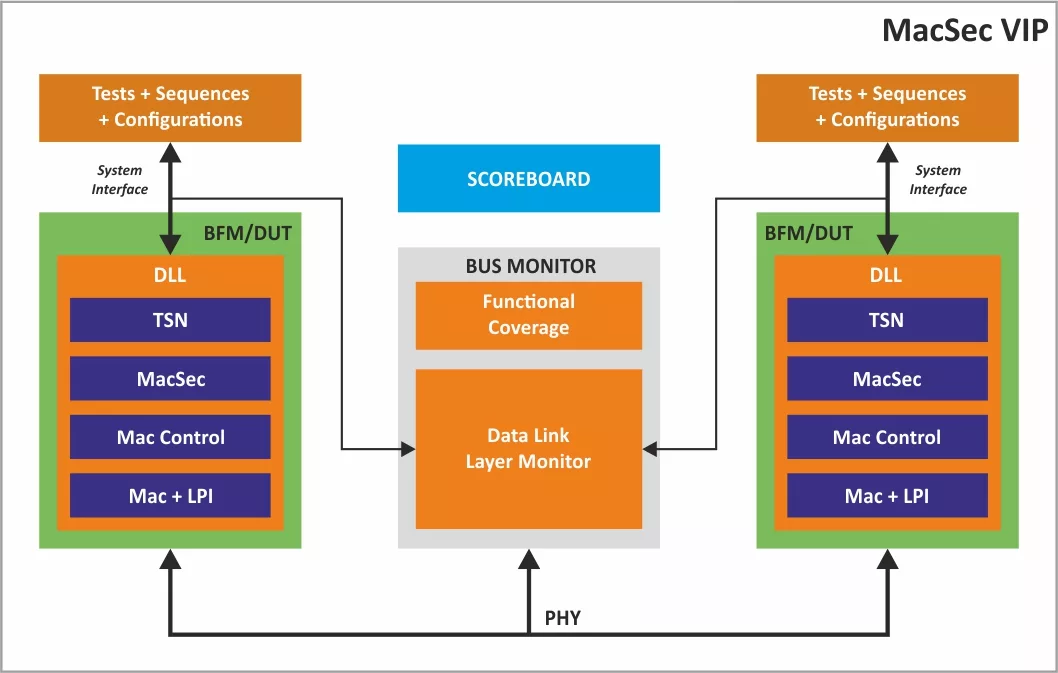

Block Diagram
MAC Sec block diagram
Benefits
- Available in native System Verilog (UVM/OVM/ VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity examples for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solutions and easy integration in IP and SoC environment
What’s Included?
- Deliverables MacSec BFM's for
- TSN
- MAC layer
- Mac Control Layer
- Mac transmits and receive
- Mac Security
- Mac Merge
- Mac monitors and scoreboard
- Test environment and Test Suite-
- Basic and Directed Protocol Tests
- Random Tests
- Error Scenario Tests
- Assertions & Cover Point Tests
- User Test Suite
- Integration Guide, User Manual, and Release Note
- GUI analyzer to view simulation packet Flow
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
MAC Sec
Vendor
Truechip Solutions
Provider
Truechip Solutions
HQ:
USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC.
Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team.
Truechip was established in 2008 with a Mission to:
- To create world class Verification IP Solutions
- To provide expert consultancy to ASIC & SoC Design companies
- To design SOCs from Architecture to Working Silicon
- To be the leading provider of Semiconductor IP Solutions
- To be a one-stop-shop for Design and Verification
- Customer Success
- Commitment to Quality
- Quality of Products
- Quality of Engineers
- Best in class Customer Support
- Ethics and Integrity
