Panmnesia Unveils Next-Stage CXL Switch and Controller at ISCA 2026

Bringing More CXL Memory within the Same Latency Class

June 25, 2026 -- Panmnesia (CEO Myoungsoo Jung) will present its next-stage CXL* controller and a fabric switch** built on it at ISCA 2026. ISCA (the International Symposium on Computer Architecture), a leading conference in the field, runs from June 27 to July 1 this year in Raleigh, USA.

Unlike the common approach of attaching devices directly to the CPU without a switch, the controller-and-switch design Panmnesia is presenting connects more devices and expands memory capacity much further, while keeping latency in a similar range and improving total system bandwidth.

^{* CXL (Compute Express Link): an interconnect standard for linking system components such as memory, accelerators, and CPUs, designed for cost-efficient memory expansion.}

^{** Switch: a device that acts as an intermediary, connecting system components such as GPUs and memory.}

Background

As large-scale AI workloads such as AI agents and LLMs become common, so does the demand for memory capacity. This has raised interest in interconnects that let a CPU attach more memory flexibly—CXL chief among them.

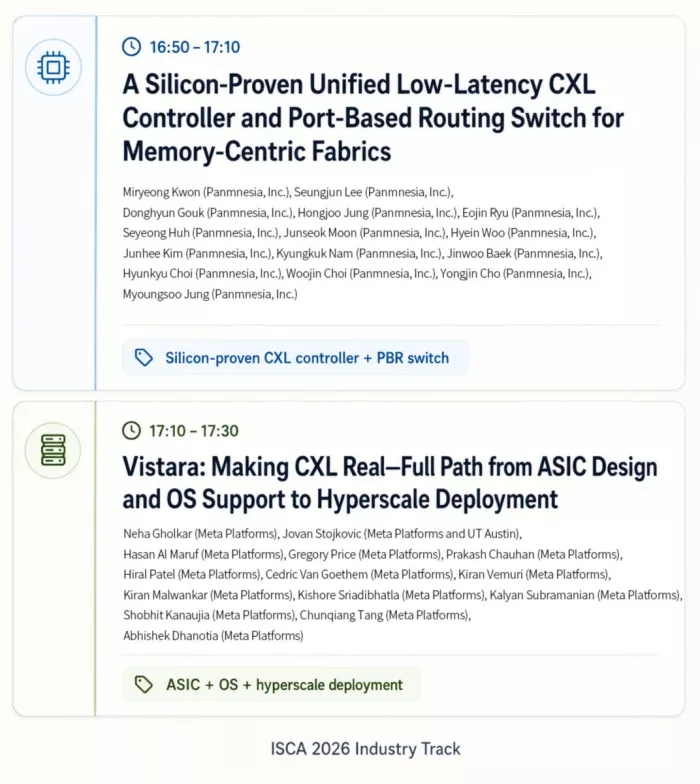

The momentum reaches beyond academia. Companies building and deploying real CXL products and prototypes are now publishing results of their own. ISCA 2026 accepted two industry CXL papers—one from Meta and one from Panmnesia.

Technical Highlights

The paper describes Panmnesia’s next-stage CXL controller and the fabric switch built around it. The main contributions of each are summarized below.

1. Next-Stage CXL Controller: Lower Latency by Design

The controller lowers latency through its design. Because CXL shares the same physical interface as PCIe***, early CXL designs were commonly built by adapting existing PCIe IP—a practical way to reach silicon quickly. That path, however, carried over PCIe-oriented behavior that can add latency. The next-stage CXL controller reworks these parts to bring latency down.

***PCIe (Peripheral Component Interconnect Express): a standard widely used to connect peripherals such as storage and GPUs to the CPU.

One concrete example is about layer-level synchronization overhead. Like PCIe controllers, early CXL designs typically kept a separate buffer at each layer and managed their timing independently, so moving data between internal layers carried a significant synchronization cost. Panmnesia’s controller instead shares buffers across layers, removing much of that overhead, and adds further per-layer optimizations to reduce latency more.

Explore Panmnesia IP:

• Link Controller IP
• Link Acceleration Unit

2. Fabric Switch: Better Connectivity Through Port-Based Routing

The switch’s defining feature is support for Port-Based Routing (PBR), which forwards data using an identifier (port ID) assigned to each device. Hierarchy-Based Routing (HBR)—used in PCIe and early CXL—can connect devices only in a hierarchy, or tree. PBR removes that constraint, letting devices be wired into any topology. The resulting mesh of interconnections resembles woven cloth, which is where the term “fabric” comes from.

The switch supports both PBR and HBR, so connections on the fabric can be arranged as the system requires and data paths optimized accordingly. Transfers can be scheduled flexibly, and performance stays stable even with many devices attached. Because the next-stage CXL controller is built in, latency stays low as well.

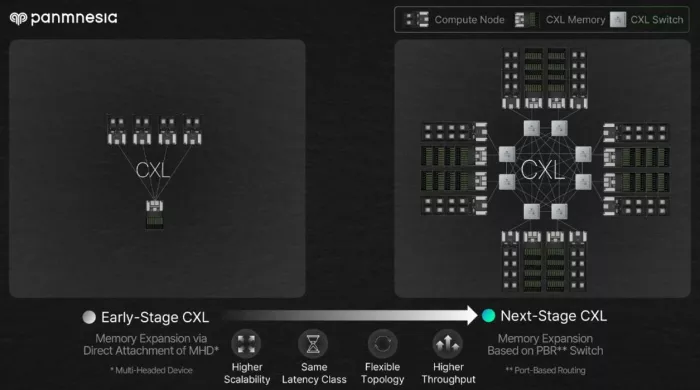

The net effect: compared with attaching a multi-headed device (MHD) directly to the CPU—the usual method for CXL memory expansion—Panmnesia’s fabric switch supports larger memory expansion while keeping latency in a similar range and improving total system bandwidth. With early CXL, only a handful of compute nodes could connect to a single CXL memory; Panmnesia’s switch scales to dozens of nodes or more, and the paper’s evaluation showed stable performance with as many as 64 nodes.

Myoungsoo Jung, CEO of Panmnesia, said: “There has been a perception that putting a switch between the CPU and devices makes it hard to meet the memory-access latency these systems expect, so directly attached MHDs stayed the norm even though they were harder to scale. Our work shows this is not an inherent limit of CXL or CXL switches—it is a trait of early-stage CXL, and one that fades as the standard and the products around it mature. With a fabric switch that carries our next-stage CXL controller, scalability, low latency, and stable performance can come together.”

Meanwhile, Panmnesia has developed the technology further into the PCIe 6.4-CXL 3.2 Fusion Switch, now available as pre-release chips. The controller has gone a step further—adding the latest CXL 4.0 features—and is now available as the PCIe 7.0-CXL 4.0 Combo IP. Panmnesia will present the paper on June 29 (local time) in the Industry Session.

Availability

Panmnesia's Partners can request pre-release chips and pilot systems for the PCIe 6.4-CXL 3.2 Fusion Switch, as well as the PCIe 7.0-CXL 4.0 Combo IP. For samples, products, or partnership inquiries, contact sales@panmnesia.com.

About Panmnesia

Panmnesia is an AI infrastructure company that develops link solutions to make AI data centers more efficient. As part of the solutions, the company has developed PCIe/CXL controllers and PCIe/CXL switches, and has introduced hybrid link architectures that integrate interconnect technologies such as UALink and NVLink Fusion, along with advanced interconnect and semiconductor technologies including HBM.

Recognized for its technological leadership, Panmnesia secured approximately USD 60 million in Series A funding in 2024 and achieved a company valuation of approximately USD 250 million.
