Wi Fi PHY TestBench IP

This datasheet present s the verification e nvironment of Comsis IEEE 802.11n PHY IP, including a SystemVerilog test bench.

Contact Provider Request Datasheet

Overview

This datasheet present s the verification e nvironment of Comsis IEEE 802.11n PHY IP, including a SystemVerilog test bench. This environment allows 2x2 & 3x3 Comsis IEEE 802.11n PHY IP to be validated as well as to develo p new functionalities around this IPs. This environment can be modified to develop and validate new IPs.

This simulation environment requires a ModelSim tool license from Mentor Graphics and the C language compiler recommended by ModelSim according with the OS. Comsis PHY IPs have been validated using ModelSim SE 10.0c version. Minor modifications can be needed to run the IPs in a newer ModelSim version.

Testbench includes a tcl package to be added to the ModelSim tcl packages folder MODELSIM_INSTALL_PATH/tcl/tc llib1.5

This IP will complete Comsis IPs portfolio (802.11a/b/g/n/i/e/p/

The c6i3e80211nTxRxBenchAD9361 is a SystemVerilog test bench featuring a transmission between two Comsis 802.11n PHY (V2x2_10_AD_10_802_11n_DesignAD9361) modules through a virtual channel. This PHY design is compatible with the Analog Device AD9361 RF transceiver. The simulation parameters such as the modulation or the frame length are read from a the configuration file.

Block Diagram

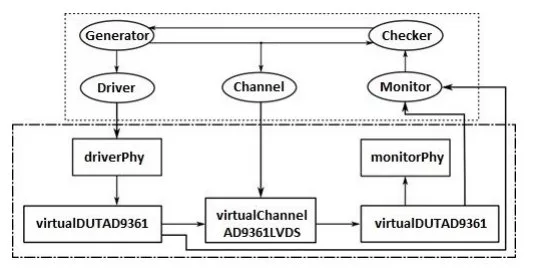

80211nTxRxBenchAD9361 block diagram

Benefits

  • SoC architecture
  • Scalable solution
  • On demand customization available

What’s Included?

  • Fully synthesizable RTL VHDL Verilog code
  • Documents (user guide , reference manual)
  • Self checking PHY Testbench configured by testcases /verification specification
  • Support

Specifications

Identity

Part Number
80211nTxRxBenchAD9361
Vendor
Comsis
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Comsis
HQ: France
Contact Comsis
